Version: MyBestDealNow

Push Notification with Firebase Cloud Messaging (FCM)

Author(s)

Ayan Ghosh
Amarnath Garai
Ashik
Sarfarajul Haque

Last Updated Date

2025-11-19

SRS References

Version History

Version	Date	Changes	Author
1.0	2025-11-19	Initial draft for Firebase Cloud Messaging	Ayan Ghosh, Amarnath Garai

Feature Overview

Objective: This document defines the unified architecture, workflow, and API design for Push Notifications using Firebase Cloud Messaging (FCM) across Android, iOS, and Web platforms. It establishes a consistent mechanism for generating, registering, managing, updating, and validating tokens using a device_id–based approach, allowing seamless multi-device support.

Scope:
The feature ensures every device (mobile or web) maintains an up-to-date push token linked with a unique device_id. It supports token registration, update, validation, removal, and stale token detection during notification sending. All APIs are platform-agnostic, enabling one unified backend for all clients.

Dependencies:

Firebase Cloud Messaging (FCM)
Device identification (OS-level or custom uuid)
Database for device token management
IAM service for mapping to user_id

Requirements

Each device must generate or possess a unique device_id.
Web clients must generate UUID-based device_id and store in localStorage.
Mobile clients may use platform identifiers or generated UUID stored in secure storage.
Push tokens must be registered to backend using a unified API endpoint.
Token registration must include:
device_id, platform, token.
Backend must map tokens to devices and to user accounts.
Token refresh events (e.g., FCM token rotation) must trigger re-registration.
Backend must update token validity on every registration.
A token older than 30 days is considered stale.
Stale tokens must be removed when sending notifications.
Backend must validate tokens during send attempts and delete invalid tokens (e.g., FCM "NotRegistered" errors).
Logout must remove token from backend via device_id.
Users may have multiple active devices; each must store a separate token.
System must support FCM tokens (mobile/web).
Data must persist even if user logs out; device_id remains as installation-level identity.

Design Specifications

UI/UX Design:

(Not platform-specific, general expectations)

Web application prompts for notification permission.
Mobile apps request OS-level notification rights.
Provide a settings page to enable/disable notifications.
Display device-specific notification preferences (optional).
Show warning if browser blocks notifications.

Data Models:

Device Token Model

public record DeviceToken
{
    public Guid Id { get; set; }
    public Guid UserId { get; set; }
    public string DeviceId { get; set; } = string.Empty;
    public string FcmToken { get; set; } = string.Empty;
    public Platform Platform { get; set; }
    public DateTime CreatedAt { get; set; } = DateTime.UtcNow;
    public DateTime UpdatedAt { get; set; } = DateTime.UtcNow;
}

public record RegisterDeviceRequest(
    string DeviceId,
    string FcmToken,
    Platform Platform
);

public record CommonResponse
{
    public int Status { get; init; }
    public string? Message { get; init; }
}

public record UpdatePushNotificationRequest
{
    public required bool PushNotificationStatus { get; set; }
}

public record NotificationSettingsResponse
{
    public Guid Id { get; init; }
    public Guid UserId { get; init; }
    public bool Push { get; init; }
    public DateTime CreatedAt { get; init; }
    public DateTime UpdatedAt { get; init; }
}

public record GetNotificationSettingsRequest
{
    public Guid UserId { get; init; }
}

public record GetNotificationSettingsResponse
{
    public NotificationSettingsResponse? Settings { get; init; }
    public int Status { get; init; }
    public string? Message { get; init; }
}

public enum Platform
{
     Android = 1,
     iOS,
     Web
}

API Interfaces:

Endpoint	Method	Parameters / Payload	Response	Status Codes
`/api/notification/device/register`	`POST`	`RegisterDeviceRequest`	`CommonResponse`	201, 200, 400, 500
`/api/notification/device/delete/{device_id}`	`DELETE`	`device_id`	`CommonResponse`	200, 400, 500
`/api/notification/push-notification`	`PUT`	`UpdatePushNotificationRequest`	`CommonResponse`	200, 400, 401, 500
`/api/notification/push-notification/{userId}`	`GET`	`userId` (path parameter)	`NotificationSettingsResponse`	200, 400, 401, 404, 500

API Request and Responses

Register Device Token

Endpoint: POST /api/notification/device/register

Request Body:

{
  "deviceId": "550e8400-e29b-41d4-a716-446655440000",
  "fcmToken": "eGhVfMgzRK6_QaJGKxL4Fs:APA91bE8X7Y9Z...",
  "platform": "Web"
}

Success Response (201 Created):

{
  "status": 201,
  "message": "Device token registered successfully"
}

Success Response (200 OK - Token Updated):

{
  "status": 200,
  "message": "Device token updated successfully"
}

Error Response (400 Bad Request):

{
  "status": 400,
  "message": "Invalid request payload. DeviceId, FcmToken, and Platform are required."
}

Error Response (500 Internal Server Error):

{
  "status": 500,
  "message": "Internal server error occurred while processing the request"
}

Delete Device Token

Endpoint: DELETE /api/notification/device/delete/{device_id}

Path Parameters:

device_id (string): The unique device identifier

Success Response (200 OK):

{
  "status": 200,
  "message": "Device token deleted successfully"
}

Error Response (400 Bad Request):

{
  "status": 400,
  "message": "Invalid device ID provided"
}

Error Response (404 Not Found):

{
  "status": 404,
  "message": "Device token not found"
}

Error Response (500 Internal Server Error):

{
  "status": 500,
  "message": "Internal server error occurred while processing the request"
}

Update Push Notification Settings

Endpoint: PUT /api/notification/push-notification

Description: Updates the push notification status for the authenticated user.

Authorization: Required (JWT Bearer Token)

Request Body:

{
  "pushNotificationStatus": true
}

Success Response (200 OK):

{
  "status": 200,
  "message": "Push notification settings updated successfully"
}

Error Response (400 Bad Request):

{
  "status": 400,
  "message": "Invalid request data"
}

Error Response (401 Unauthorized):

{
  "status": 401,
  "message": "Invalid user token"
}

Error Response (404 Not Found):

{
  "status": 404,
  "message": "User settings not found"
}

Error Response (500 Internal Server Error):

{
  "status": 500,
  "message": "An internal error occurred while updating notification settings"
}

Get Push Notification Settings

Endpoint: GET /api/notification/push-notification/{userId}

Description: Retrieves the push notification settings for a specific user. The authenticated user can only retrieve their own settings.

Authorization: Required (JWT Bearer Token)

Path Parameters:

userId (Guid): The unique identifier of the user

Success Response (200 OK):

{
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "userId": "550e8400-e29b-41d4-a716-446655440000",
  "push": true,
  "createdAt": "2025-11-19T10:30:00Z",
  "updatedAt": "2025-11-20T14:15:00Z"
}

Error Response (400 Bad Request):

{
  "status": 400,
  "message": "Invalid request data"
}

Error Response (401 Unauthorized - Invalid Token):

{
  "status": 401,
  "message": "Invalid user token"
}

Error Response (401 Unauthorized - User Mismatch):

{
  "status": 401,
  "message": "You are not authorized to view this user's settings."
}

Error Response (404 Not Found):

{
  "status": 404,
  "message": "User settings not found"
}

Error Response (500 Internal Server Error):

{
  "status": 500,
  "message": "An internal error occurred while retrieving notification settings"
}

Platform Values:

Android - Android mobile devices
iOS - iOS mobile devices
Web - Web browsers

Third-Party Integrations:

Firebase Cloud Messaging (FCM) → Push notifications.

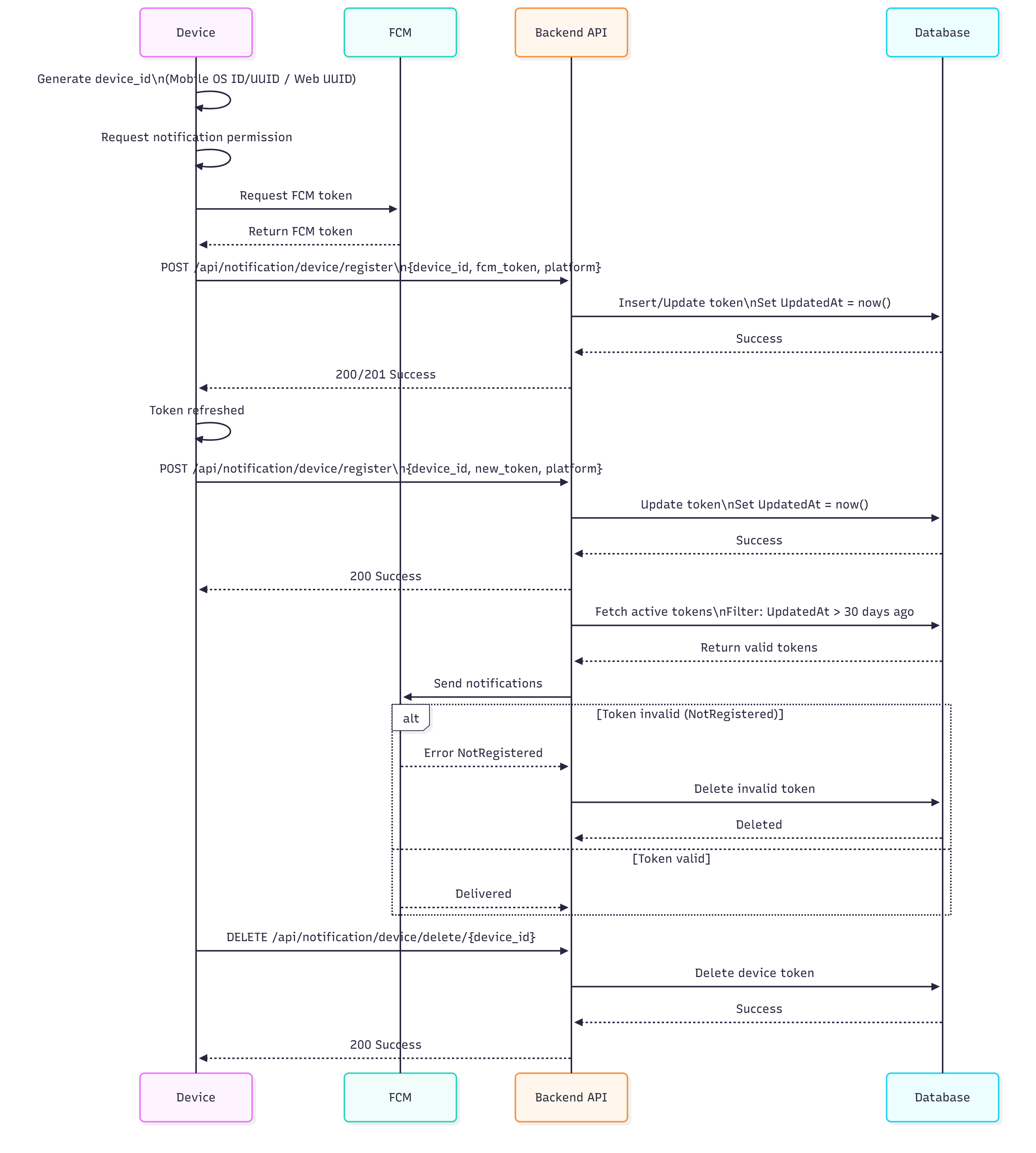

Workflow:

Device generates device_id:
- Mobile → OS identifier or random UUID
- Web → UUID stored in localStorage
App requests notification permission.
Retrieve FCM token (getToken() or equivalent).
Register/update token via /api/notification/device/register.
On token refresh:
- Device sends updated token to backend.
During notification send:
- Backend filters tokens:
  - Remove tokens older than 30 days
  - Remove tokens invalidated during FCM send
Logout/uninstall:
- Device calls /api/device/delete.

Note: Users may have multiple devices simultaneously.

alt text

Notification Trigger Rules:

The system respects user notification preferences before sending push notifications for specific events:

New Auction Notification:
- Target Audience: Dealer users
- Condition: Push notification is sent only if the dealer has turned on their push notification setting (push: true)
- Trigger: When a new auction is created in the system
New/Lowest Bid Notification:
- Target Audience: Customer
- Condition: Push notification is sent only if the customer has turned on their push notification setting (push: true)
- Trigger: When a new bid is placed or when a bid becomes the lowest bid in an auction
Bid Accept Notification:
- Target Audience: Customer
- Condition: Push notification is sent only if the customer has turned on their push notification setting (push: true)
- Trigger: When a dealer accepts a customer's bid

Implementation Flow:

Before sending any push notification, the system must:

Retrieve the target user's notification settings using the GetNotificationSettingsRequest
Check the Push property in NotificationSettingsResponse
Only proceed with FCM notification delivery if Push == true
Skip notification sending if Push == false or if settings are not found

Development Tasks & Estimates

No	Task Name	Estimate (Hours)	Dependencies	Notes
1		4		Schema update

Review & Approval

Reviewer:

Approval Date:

Notes:

FCM Push Notification - Mobile

Overview

This POC demonstrates Firebase Cloud Messaging (FCM) implementation in the MBDN Market Flutter app using Clean Architecture principles with Riverpod 3.0 state management.

Architecture

Feature Structure

lib/features/message/
├── application/
│   └── messaging_state.dart          # Freezed state unions
├── providers/
│   ├── messaging_provider.dart       # Main FCM logic
│   └── notification_badge_provider.dart  # Badge count management
└── presentation/
    └── screen/
        └── message_screen.dart        # Notification history UI

Implementation Details

1. Dependencies

firebase_core: ^3.7.0
firebase_messaging: ^15.1.0
uuid: ^4.5.1  # For device ID generation

2. State Management

MessagingState (Freezed union):

initial - Before initialization
loading - During setup
ready(deviceId, token, lastMessage) - Active with FCM token
error(message) - Permission denied or failure

3. Key Components

messaging_provider.dart

Responsibilities:

Request notification permissions
Generate/persist unique device ID
Manage FCM token (get, save, refresh)
Listen to foreground messages
Handle token refresh events

Key Methods:

_init() - Initialize FCM, request permissions, set up listeners
_ensureDeviceId() - Generate UUID v4 device ID (persisted via SharedPreferences)
_ensureToken() - Fetch and save FCM token
_saveToken() - Store token in SharedPreferences as fcm_token

Streams:

FirebaseMessaging.onMessage - Foreground notifications
FirebaseMessaging.instance.onTokenRefresh - Token rotation

notification_badge_provider.dart

Features:

Badge count persistence (notification_badge_count key)
Increment on new message
Reset badge count
Notification history (in-memory list)

main.dart

Setup:

@pragma('vm:entry-point')
Future<void> _firebaseMessagingBackgroundHandler(RemoteMessage message) async {
  await Firebase.initializeApp();
}

Future<void> main() async {
  WidgetsBinding widgetsBinding = WidgetsFlutterBinding.ensureInitialized();
  await Firebase.initializeApp();
  FirebaseMessaging.onBackgroundMessage(_firebaseMessagingBackgroundHandler);
  runApp(const ProviderScope(child: App()));
}

Listener in App Widget:

ref.listen(messagingProvider, (prev, next) {
  final last = next.whenOrNull(
    ready: (deviceId, token, lastMessage) => lastMessage,
  );
  if (last is RemoteMessage) {
    final title = last.notification?.title ?? 'New message';
    final body = last.notification?.body ?? last.data.toString();
    CustomSnackbar.show(context, '$title: $body');
  }
});

4. Notification Handling

Three Scenarios:

Foreground - FirebaseMessaging.onMessage stream
- Shows CustomSnackbar
- Increments badge
- Adds to history
Background - _firebaseMessagingBackgroundHandler
- Executes top-level function
- Must be annotated with @pragma('vm:entry-point')
Terminated - System handles, can check on app launch

5. Permission Flow

final settings = await FirebaseMessaging.instance.requestPermission(
  alert: true,
  badge: true,
  sound: true,
  announcement: false,
  carPlay: false,
  criticalAlert: false,
  provisional: false,
);

if (settings.authorizationStatus == AuthorizationStatus.denied) {
  state = const MessagingState.error('Notifications permission denied');
  return;
}

Testing

Get FCM Token

// Watch provider in UI
ref.watch(messagingProvider).whenOrNull(
  ready: (deviceId, token, _) => Text('Token: $token'),
);

Send Test Notification

Use Firebase Console or curl:

curl -X POST https://fcm.googleapis.com/fcm/send \
  -H "Authorization: key=YOUR_SERVER_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "to": "FCM_TOKEN_HERE",
    "notification": {
      "title": "Test Notification",
      "body": "This is a test message"
    },
    "data": {
      "click_action": "FLUTTER_NOTIFICATION_CLICK",
      "route": "/home"
    }
  }'

Debug Logs

debugPrint('FCM token: $token');  // On token acquisition
debugPrint('Device ID: $deviceId');  // On device ID creation

Storage Keys

Key	Type	Purpose
`device_id`	String	UUID v4 device identifier
`fcm_token`	String	Current FCM registration token
`notification_badge_count`	int	Unread notification count

Platform Configuration

Android

AndroidManifest.xml - Add intent filters for notification click handling:

<intent-filter>
    <action android:name="FLUTTER_NOTIFICATION_CLICK" />
    <category android:name="android.intent.category.DEFAULT" />
</intent-filter>

iOS

Info.plist - Background modes:

<key>UIBackgroundModes</key>
<array>
    <string>remote-notification</string>
</array>

Limitations & Future Enhancements

Current Limitations

No API integration (token not sent to backend)
No notification channels (Android)
No action buttons
No deep linking
History is in-memory only (cleared on app restart)
No notification scheduling

Recommended Enhancements

Backend Integration
- POST token to /api/v1/users/fcm-token
- Delete token on logout
- Associate token with user account
Deep Linking
- Parse data.route from notification
- Navigate using GoRouter

Notification Channels

const AndroidNotificationChannel channel = AndroidNotificationChannel(
  'high_importance_channel',
  'High Importance Notifications',
  importance: Importance.high,
);

Local Notifications
- Use flutter_local_notifications for foreground display
- Scheduled notifications

Notification Actions

"data": {
  "actions": ["Accept", "Decline"],
  "type": "auction_bid"
}

Troubleshooting

Token not received

Check Firebase project configuration
Verify google-services.json (Android) / GoogleService-Info.plist (iOS)
Ensure internet connectivity
Check permission status

Background handler not working

Verify @pragma('vm:entry-point') annotation
Check Xcode build settings (iOS)
Test on physical device (iOS)

Permission denied

Settings > App > Notifications > Enable

Re-request permission after settings change:

await FirebaseMessaging.instance.requestPermission();

Architecture Compliance

✅ Follows Clean Architecture:

Domain: MessagingState (Freezed models)
Application: State management logic in MessagingNotifier
Presentation: UI in MessageScreen

✅ Riverpod 3.0:

@riverpod annotations
Code generation with build_runner
Proper disposal with ref.onDispose

✅ Project Conventions:

Notifier suffix: MessagingNotifier
State suffix: MessagingState
Provider suffix: messagingProvider
Freezed for state unions
SharedPreferences for persistence

Push Notification with Firebase Cloud Messaging (FCM)

Author(s)​

Last Updated Date​

SRS References​

Version History​

Feature Overview​

Requirements​

Design Specifications​

Device Token Model​

API Request and Responses​

Register Device Token​

Delete Device Token​

Update Push Notification Settings​

Get Push Notification Settings​

Development Tasks & Estimates​

Review & Approval​

FCM Push Notification - Mobile

Overview​

Architecture​

Feature Structure​

Implementation Details​

1. Dependencies​

2. State Management​

3. Key Components​

messaging_provider.dart​

notification_badge_provider.dart​

main.dart​

4. Notification Handling​

5. Permission Flow​

Testing​

Get FCM Token​

Send Test Notification​

Debug Logs​

Storage Keys​

Platform Configuration​

Android​

iOS​

Limitations & Future Enhancements​

Current Limitations​

Recommended Enhancements​

Troubleshooting​

Token not received​

Background handler not working​

Permission denied​

Architecture Compliance​

References​

Author(s)

Last Updated Date

SRS References

Version History

Feature Overview

Requirements

Design Specifications

Device Token Model

API Request and Responses

Register Device Token

Delete Device Token

Update Push Notification Settings

Get Push Notification Settings

Development Tasks & Estimates

Review & Approval

Overview

Architecture

Feature Structure

Implementation Details

1. Dependencies

2. State Management

3. Key Components

messaging_provider.dart

notification_badge_provider.dart

main.dart

4. Notification Handling

5. Permission Flow

Testing

Get FCM Token

Send Test Notification

Debug Logs

Storage Keys

Platform Configuration

Android

iOS

Limitations & Future Enhancements

Current Limitations

Recommended Enhancements

Troubleshooting

Token not received

Background handler not working

Permission denied

Architecture Compliance

References
