Leave Management System

Author(s)

• Sanket Mal

• ...

Last Updated Date

[2025-03-13]

---

Version History

Version	Date	Changes	Author
1.0	2025-03-13	Initial draft	Sanket Mal, Ribhu Gautam
...	...	...	...

---

Feature Overview

Objective:
The Leave Management System facilitates the process of requesting, approving, and tracking employee leaves, along with maintaining leave balances and reporting.

Scope:

• On behalf of Employees Manager can submit leave requests.
• HR can approve or reject requests.
• Work on rest days can be logged.
• A Daily Scheduled Job will run once a day to:
  • Identify all employees who have active leave on that particular day.
  • Deduct the leave from their available leave balance.
  • Update the leave balance in the system accordingly.

Dependencies:

---

Requirements

1. On behalf of Employee Manager should be able to request leave.
2. HR should be able to approve/reject leave requests.
3. Leave balance should be updated automatically.
4. A monthly leave report should be generated.
5. Work on rest days should be recorded and adjusted.

---

Workflow:

1. Employee Leave Request Workflow

Step 1: Employee Submits Leave Request

• Employee submits a leave request using the EmployeeLeaveRequest payload.
• The system validates the data and inserts a record into the tblLeaveRequest table with Status as Pending.

Step 2: HR Review

• HR can view all pending leave requests.
• HR either Approves or Rejects the leave request using the LeaveRequestApproval payload.
• The system updates the Status and Remarks in tblLeaveRequest.

Approval Process

• Approved: Move to the leave consumption or LOP process.
• Rejected: No further action required. Employee is notified.

---

2. Leave Transaction Types and Management

A. Leave Consumed

• If the employee has sufficient leave balance (>0) and the leave is approved, then it is marked as Consumed.
• A record is inserted into tblLeaveTransactions with LeaveType as Consumed.

B. LOP (Loss of Pay)

• If the employee has no leave balance (=0) and the leave is approved, then it is marked as LOP.
• A record is inserted into tblLeaveTransactions with LeaveType as LOP.

C. Leave Earned

• If an employee works 8+ hours on a rest day, they earn a leave.
• At checkout, a record is inserted into tblLeaveTransactions with LeaveType as Earned.

D. Leave Expired

• At the end of the financial year (April 1st), any remaining leave balance is expired.
• A record is inserted into tblLeaveTransactions with LeaveType as Expired.

---

3. Schedular Workflow

Frequency

• Runs once daily.

Steps

1. Fetch Approved Leaves
   • Select all approved leaves from tblLeaveRequest where the LeaveTo date matches yesterday.
2. Calculate Leave Balance
   • Calculate leave balance for each employee using the formula:

     Total Earned Leave - Total Consumed Leave - Total Expired Leave
3. Determine Leave Type
   • Leave Balance = 0 → Mark all dates as LOP in tblLeaveTransactions.
   • Leave Balance >= Total Leave Days → Mark all dates as Consumed.
   • 0 < Leave Balance < Total Leave Days:
     • Mark the initial days, up to the available leave balance, as Consumed.
     • Any remaining days will be marked as LOP.
4. Insert Records
   • Insert appropriate records into tblLeaveTransactions.

---

Design Specifications

• UI/UX Design:

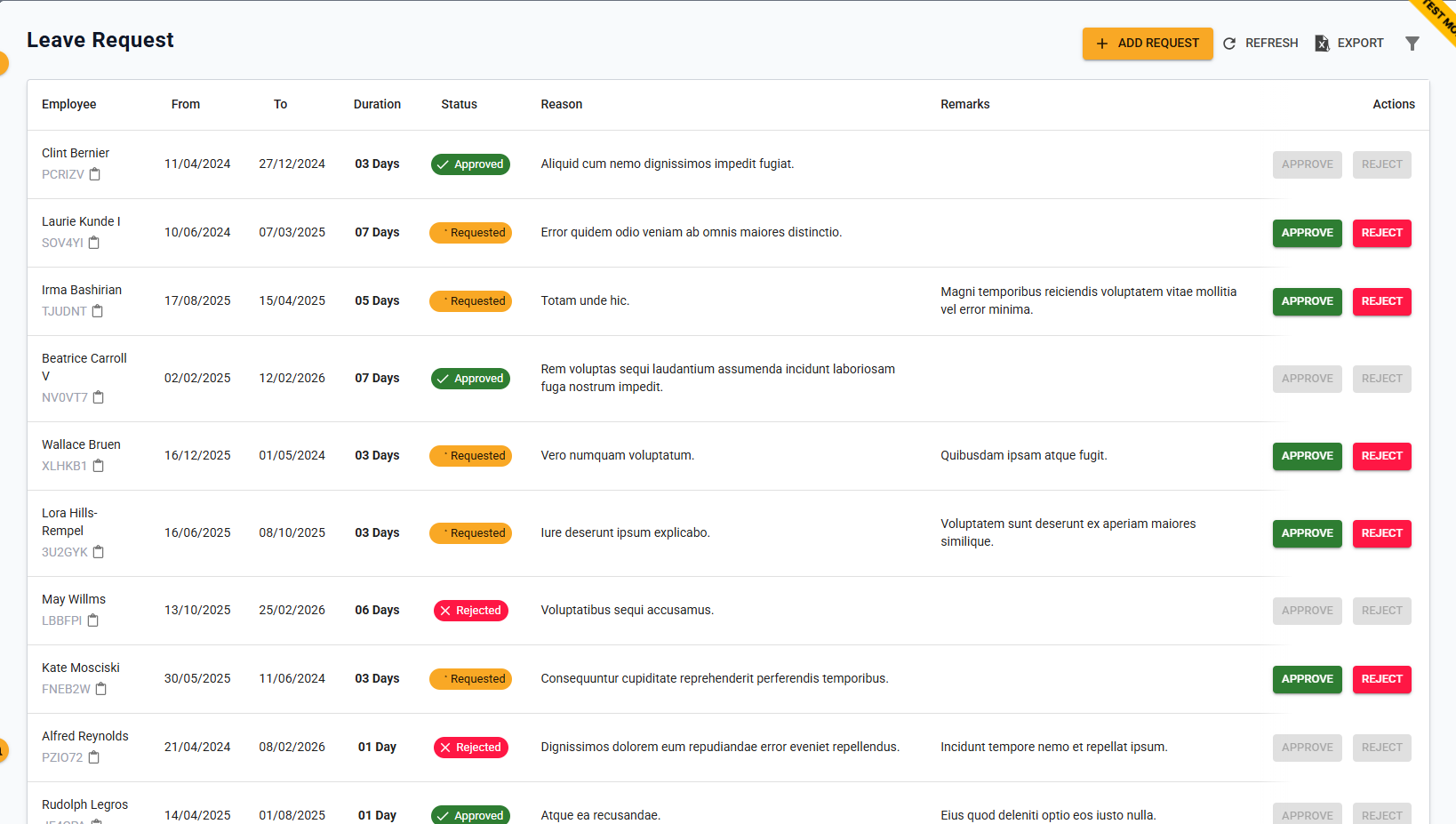

1. Leave Request Page:

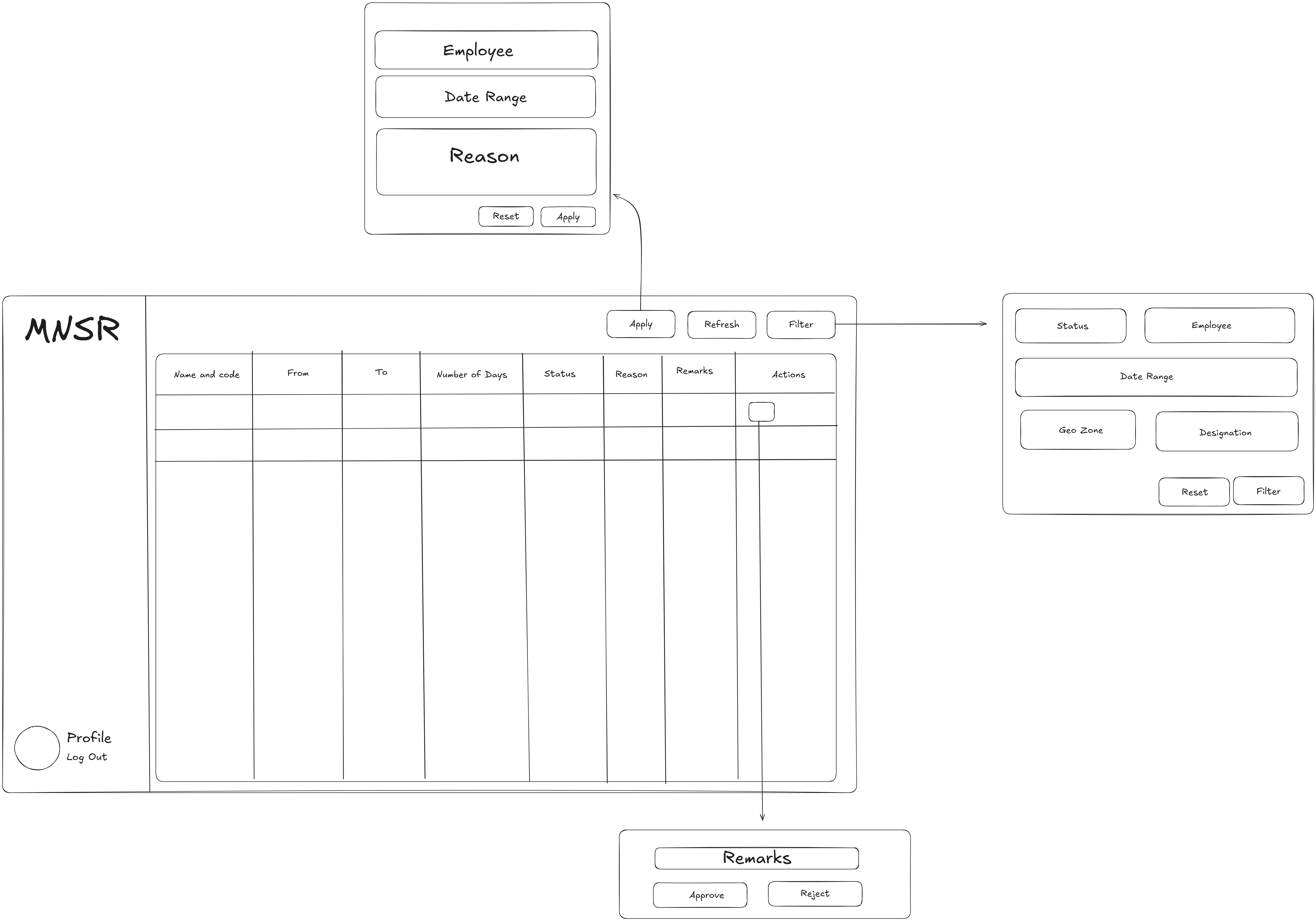

Wireframe:

Implementation: The interface includes:

• Leave dashboard to check requested leaves including filter.
• Add leave modal to raise leave request.
• Leave approval dialog to aproove or reject leave.

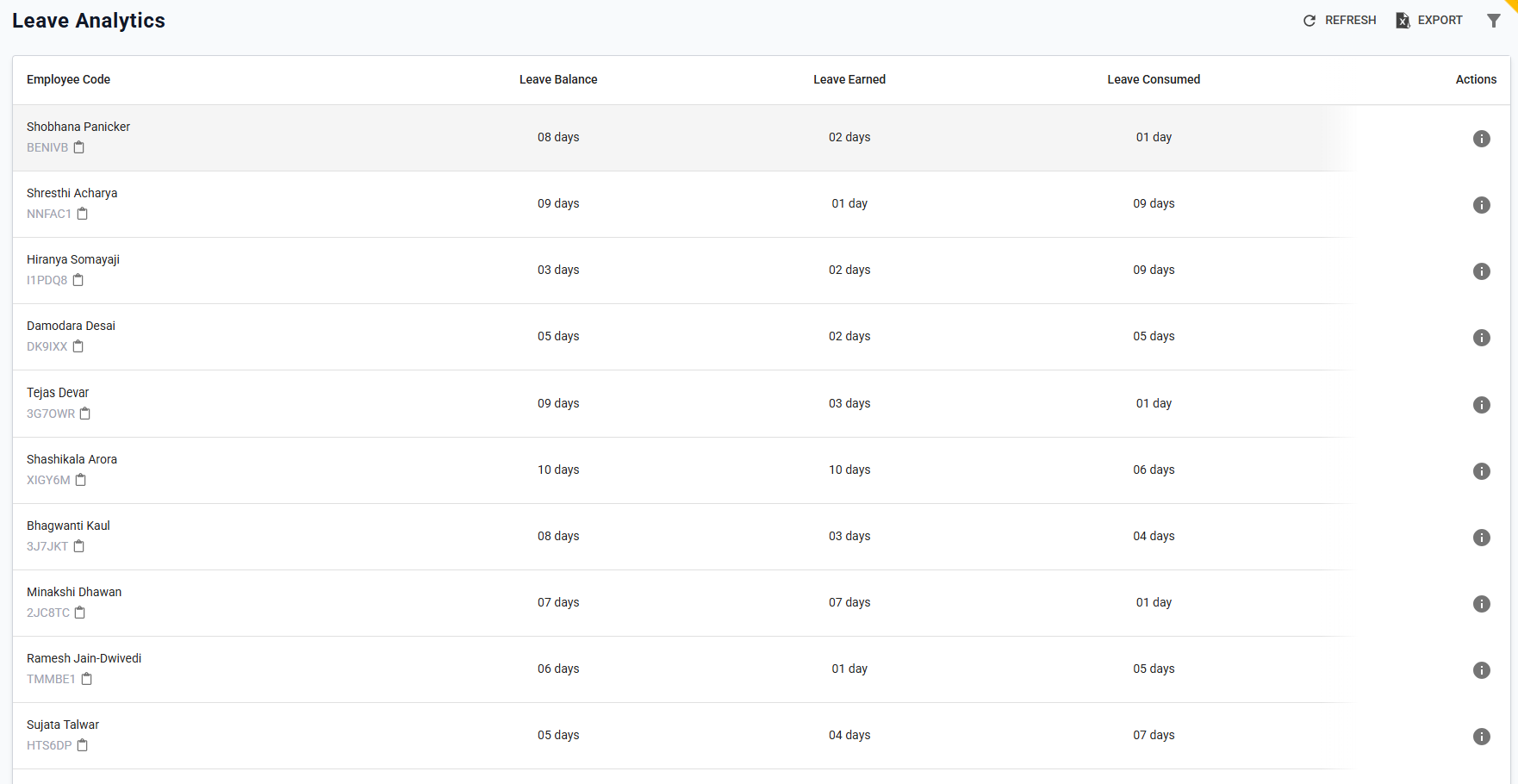

2. Leave Analytics Page:

The interface includes:

• Leave Analytics page to check total, consumed and earned leave of an employee.
• Filter with Employee name/code and date range is present.
• Refresh and Export Functionality is also present.

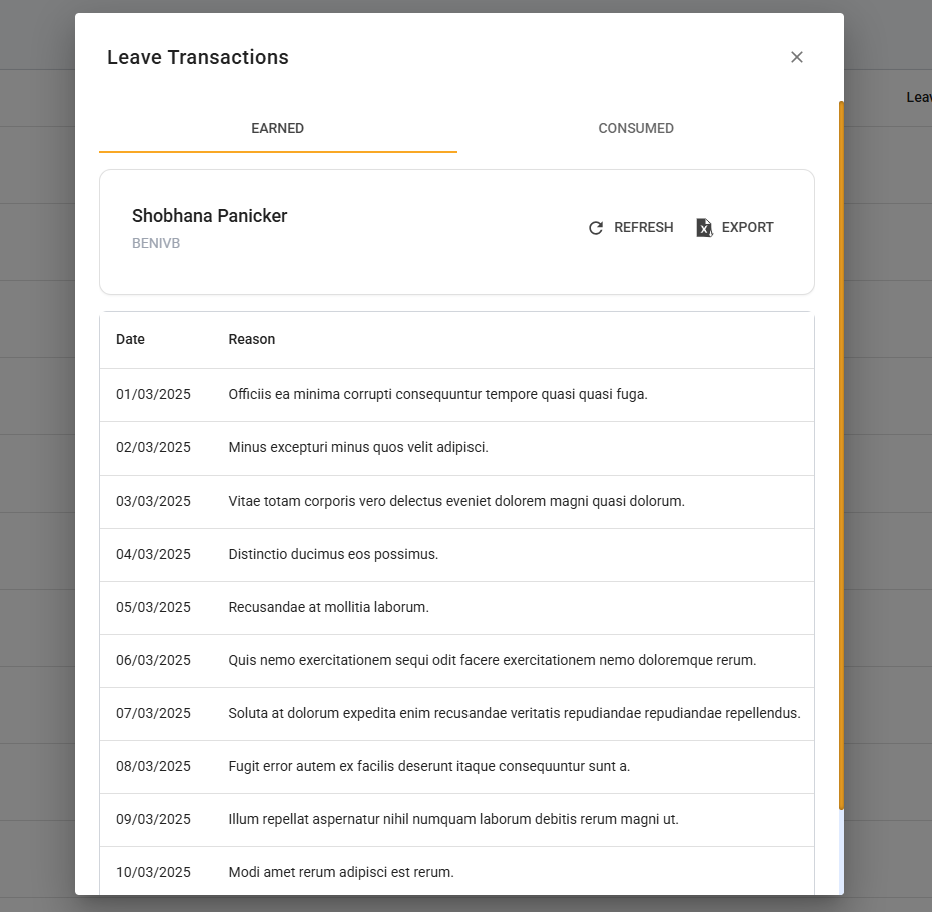

3. Leave Transactions Dialog:

The interface includes:

• Leave Transactions page to view details for Leaves earned and consumed by employee.

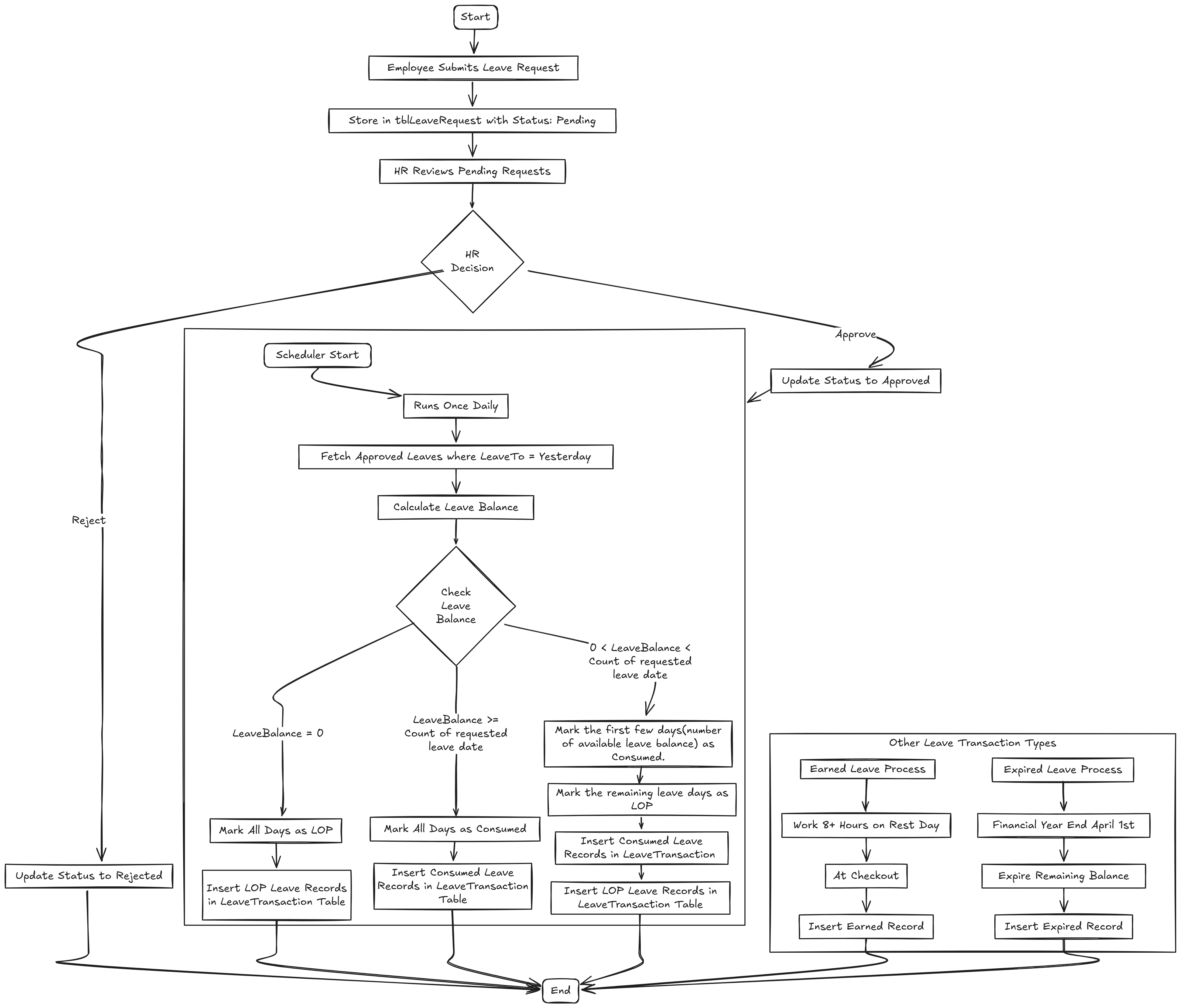

• WorkFlow:

• Data Models:
  (Detail the data structures, including database schemas or objects.)

  Enums & Class Structures

    public enum LeaveRequestStatus
    {
        None,
        Requested,
        Approved,
        Rejected
    }
    public enum Day
    {
        Sunday = 0,
        Monday = 1,
        Tuesday = 2,
        Wednesday = 3,
        Thursday = 4,
        Friday = 5,
        Saturday = 6,
        All = 99
    }
    public enum LeaveType
    {
        Consumed,
        Earned,
        Expired,
        LOP
    }
    public record EmployeeLeaveRequest
    {
        public required string EmployeeCode { get; set; }
        public string? EmployeeName { get; set; }
        public required DateTime LeaveFrom { get; set; }
        public required DateTime LeaveTo { get; set; }
        public int Duration { get; set; } // Total count of leave date exclude rest day
        public string? Reason { get; set; }
        public LeaveRequestStatus Status { get; set; }
    }
    public record LeaveRequestDetails : EmployeeLeaveRequest
    {
        public Guid RequestId { get; init; }
        public string? Remarks { get; init; }
        public string? RequestedBy { get; init; }
        public DateTime RequestedOn { get; set; }
        public string ? ApprovedBy { get; init; }
        public DateTime ApprovedOn { get; set; }
    }
    public record LeaveDateList
    {
        public Guid RequestId { get; init; }
        public required string EmployeeCode { get; init; }
        public string? EmployeeName { get; init; }
        public List<DateTime> LeaveDates { get; init; } = [];
        public required LeaveType LeaveType { get; init; }
    }
    public record LeaveTransactionResponse
    {
        public Guid TransactionId { get; init; }
        public DateTime Date { get; init; }
        public string? Reason { get; init; }
    }
    public record LeaveTransactionFilter
    {
        public Guid? EmployeeCode { get; init; }
        public int RowsPerPage { get; set; } = 10;
        public int PageNumber { get; set; } = 1;
        public DateTime? StartDate { get; set; }
        public DateTime? EndDate { get; set; }
    }
    public class LeaveRequestApproval
    {
        public Guid RequestId { get; set; }
        public LeaveRequestStatus Status { get; set; }  // "Approved" or "Rejected"
        public string? Remarks { get; set; }
    }
    public class EmployeeLeaveBalance
    {
        public required string EmployeeCode { get; set; }
        public string EmployeeName {get; set;}
        public int LeaveBalance { get; set; }
        public int LeaveConsumed { get; set; }
        public int LeaveEarned { get; set; }
    }
    public class LeaveRequestFilter
    {
        public int RowsPerPage { get; set; }
        public int PageNumber { get; set; }
        public string? EmployeeCode { get; set; }
        public DateTime? LeaveFrom { get; set; }
        public DateTime? LeaveTo { get; set; }
        public LeaveRequestStatus? Status { get; set; }
        public Guid DesignationId {get; init;}
        public Guid GeoZoneId {get; init;}
        public Guid DepartmentId {get; init;}
        public bool IsExcel {get; init;} = false;
    }



  Schemas

  CREATE TABLE tblLeaveRequest (
        RequestId UUID PRIMARY KEY,
        EmployeeCode VARCHAR(50),
        EmployeeName VARCHAR(100),
        LeaveFrom DATE,
        LeaveTo DATE,
        Status TEXT,
        Reason TEXT,
        RequestedBy VARCHAR(50),
        RequestedOn TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP,
        ApprovedBy VARCHAR(50),
        ApprovedOn TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP,
        Remarks TEXT NULL,
        Duration INT,
        LogUser VARCHAR(50),
        LogDts TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP
    );

    CREATE TABLE tblLeaveTransactions (
      TransactionId UUID PRIMARY KEY DEFAULT gen_random_uuid(),
      RequestId UUID,
      EmployeeCode VARCHAR(50),
      Date DATE,
      LeaveType TEXT,
      LOP BOOLEAN DEFAULT FALSE,
      LogUser VARCHAR(50),
      LogDts TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP,
      CONSTRAINT FK_RequestId FOREIGN KEY (RequestId) REFERENCES tblLeaveRequest(RequestId)
   );

   CREATE TABLE tblLeaveBalance (
      EmployeeCode VARCHAR(50) PRIMARY KEY,
      LeaveBalance INT NOT NULL CHECK (LeaveBalance >= 0),
      LogUser VARCHAR(50),
      LogDts TIMESTAMP WITH TIME ZONE DEFAULT CURRENT_TIMESTAMP
  );


  ALTER TABLE tblLeaveTransactions
  ADD COLUMN Reason TEXT;

  ALTER TABLE tblLeaveTransactions
  RENAME COLUMN RequestId TO MappingId;

  ALTER TABLE tblLeaveTransactions
  DROP COLUMN IF EXISTS LOP;

  ALTER TABLE tblLeaveTransactions
  ADD COLUMN Count INT;

  DROP TABLE IF EXISTS tblLeaveBalance;


• API Interfaces:
  (Define the APIs required for this feature, including endpoints, methods, request/response formats.)

  Endpoint	Method	Parameters	Response	Response Status Codes
  /api/attendance/leave/request	POST	LeaveRequest	string message	200, 204, 403,400,500
  /api/attendance/leave/approve	PUT	LeaveRequestApproval	string message	200, 204, 403,400,500
  /api/attendance/leave/request	GET	LeaveRequestFilter	ServerPaginatedData<LeaveRequestDetails>	200, 204,400,403, 500
  /api/attendance/leave/earned/{employeeCode}	GET	LeaveTransactionFilter	ServerPaginatedData<LeaveTransactionResponse>	200, 204,400,403, 500
  /api/attendance/leave/consumed/{employeeCode}	GET	LeaveTransactionFilter	ServerPaginatedData<LeaveTransactionResponse>	200, 204, 403,400,500
  /api/attendance/leave/report	GET	LeaveTransactionFilter	ServerPaginatedData<EmployeeLeaveBalance>	200, 204, 403,400,500

• Third-Party Integrations:
  (List any third-party services or tools that need to be integrated.)

• Workflow:
  (Describe the end-to-end workflow of the feature, detailing how different components interact, including the sequence of events, data flow, and the user journey.)

---

Development Tasks & Estimates

(Break down the development process into smaller tasks and provide time estimates for each.)

No	Task Name	Estimate (Hours)	Dependencies	Notes
1	API for making a leave request	5 hours
2	Test leave request API	1 hour	Dependency 1
3	API for getting paginated leave requests	5 hours
4	Test get paginated leave requests API	1 hour	Dependency 3
5	API for leave approval	4 hours	Dependency 1
6	Test leave approval API	1 hour	Dependency 5
7	Track work on rest day (if above 8 hours) and grant leave for future use	6.5 hours
8	Test Task 7	1.5 hours	Dependency 7
9	API for getting leave report of employees	6 hours
10	Test get employee leave report of employees API	1 hour	Dependency 9
11	API for paginated leave consumed of a particular employee	5 hours
12	Test the API for paginated leave consumed of a particular employee	1 hour	Dependency 11
13	API for paginated leave earned of a particular employee	5 hours
14	Test the API for paginated leave earned of a particular employee	1 hour	Dependency 13
15	Daily Scheduled Job to Update Employee Leave Balance	6.5 hours
16	Test Daily Scheduled Job to Update Employee Leave Balance	1.5 hours	Dependency 15
17	Integration Testing for Employee Leave Management APIs	8 hours
	Total	60 hours

---

Testing & Quality Assurance

(Outline the testing strategy and quality assurance measures for the feature.)

• Unit Tests:
  (List the unit tests that will be written for this feature.)

• Integration Tests:
  (Describe how integration testing will be conducted.)

• Acceptance Criteria:
  (Define the criteria that must be met for the feature to be considered complete.)

• Testing Tools:
  (List any tools that will be used for testing.)

---

Deployment Considerations

(Describe any deployment considerations, including environment configurations, feature toggles, or migration steps.)

• Configuration Changes:
  (Detail any configuration changes required for this feature.)

• Rollout Plan:
  (Outline the plan for rolling out the feature, including any phased releases.)

---

Risks & Mitigations

(Identify potential risks and the strategies to mitigate them.)

Risk	Impact	Likelihood	Mitigation Strategy
Risk 1	High	Medium	Strategy for mitigating Risk 1
Risk 2	Medium	High	Strategy for mitigating Risk 2
...	...	...	...

---

Review & Approval

(Include a section for review and approval by stakeholders.)

• Reviewer:
  (Name and role of the person reviewing the document.)

• Approval Date:
  (Date when the feature is approved for development.)

---

Notes
(Add any additional notes or considerations related to the feature development here.)
