Security Deposit Reversal

Author(s)

• Dipak Mourya
• Bishwanath Jana

Last Updated Date

2024-10-16

---

Version History

Version	Date	Changes	Author
1.0	2024-10-16	Initial draft	Bishwanath Jana

---

Feature Overview

Objective:
The goal of this feature is to handle the reversal of security deposit payments when a tenant vacates a property. When the tenant offboards and the property status is changed, the security deposit that was originally paid needs to be reversed. This feature will create a new entry in the system with the same details as the original transaction but with a negative amount to effectively refund the deposit.

This process ensures that the system accurately records and tracks security deposit reversals when tenants leave the property.

Scope:
The security deposit reversal feature is restricted to admin and super admin users, allowing them to reverse payments for specific customers.

---

Requirements

Before returning a tenant's security deposit, we need to make sure that the tenant has officially moved out and completed the offboarding process. Once we confirm that the tenant has successfully left, we will create a new record to show the amount being refunded, making it clear in our system that the security deposit is being returned.

---

Design Specifications

• UI/UX Design:

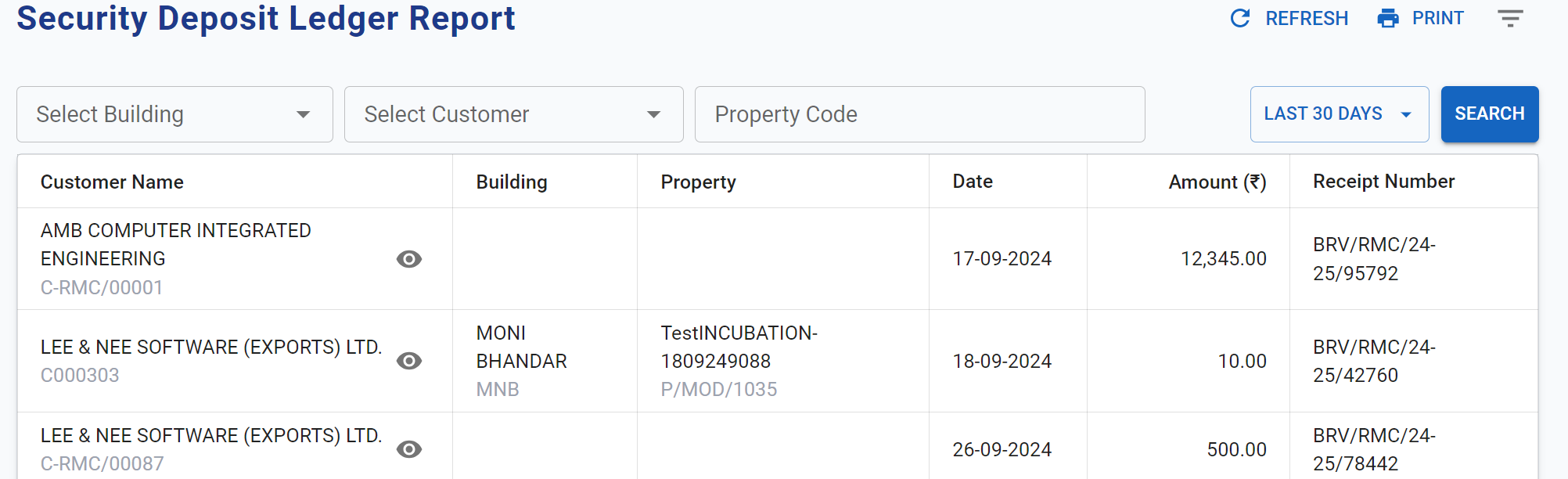

  The below image is provided for reference. In the UI, the new sd-reverse option will be placed beside the eye icon. This button will be available only when the offboarding process for a customer is fully completed. If the offboarding is incomplete, the reverse payment option will remain disabled, ensuring that security deposit payments can only be reversed for customers who have completed their offboarding process.

When a user clicks on the reverse sd-payment option, the system will gather the necessary information, including the customerId, buildingId, propertyId, and brvNumber. These details will be sent as a payload to a designated API endpoint. Upon successful submission of this data, the API will process the request, and the reverse of the security deposit (SD) will be completed.

• Data Models: The SecurityDepositTransaction structure will be used to represent the security deposit transactions:

  public record SecurityDepositTransaction
  {
      public string BrvNumber { get; init; }
      public string BuildingCode { get; init; }
      public string CustomerCode { get; init; }
      public string PropertyCode { get; init; }
  }

  public class SDLedgerStruct
  {
      public Guid TransactionId { get; set; }
      public string? CustId { get; set; }
      public string? CustName { get; set; }
      public string? BuildingCode { get; set; }
      public string? BuildingName { get; set; }
      public string? PropertyCode { get; set; }
      public string? PropertyName { get; set; }
      public DateTime? Date { get; set; }
      public decimal Amount { get; set; }
      public string? ReceiptNumber { get; set; }
      public bool IsOffboarded { get; set; } // New property added to indicate if the customer has offboarded
  }

  The IsOffboarded property has been added to the SDLedgerStruct class to indicate whether a customer has successfully offboarded.

  When processing a security deposit transaction, the system retrieves the BuildingCode,CustId and PropertyCode from the tblsecuritydeposite table using the provided brvnumber. If the customer has completed the offboarding process, the IsOffboarded field is set to true, allowing for a security deposit reversal. If not, it remains false, preventing any reversal actions until offboarding is finalized.

---

• API Interfaces:
  The following API endpoints are required for handling the reversal logic:

  Endpoint	Method	Parameters	Response	Response Status Codes
  security-deposit/reverse	POST	SecurityDepositTransaction (required, body): Transaction details for reversal	String (Message)	201, 400, 500
  customer/sd/ledger	GET	The IsOffboarded property has been added to the SDLedgerStruct class	{ "isOffboard": boolean }	200, 404, 500

---

Workflow for the New API:

1. The client sends a GET request to the customer/sd/ledger endpoint with the brvnumber as a query parameter.
2. The system retrieves the BuildingCode and PropertyCode from the tblsecuritydeposite table based on the provided brvnumber.
3. The system checks the statusofland in the tblcustomerpropertymapping table for the provided brvnumber.
4. If the status is "Vacant," the system sends a request to the CoreERP system to verify the offboarding status.
   • If the CoreERP response indicates that the customer has been offboarded, the response will return {"isOffboard": true}.
   • If the CoreERP response indicates that the customer has not been offboarded, the response will return {"isOffboard": false}.
5. If the status is "Occupied," the response will return {"isOffboard": false} without checking the CoreERP response.
6. If the brvnumber does not exist, a 404 response will be sent.
7. Any internal errors will result in a 500 response.

---

Development Tasks & Estimates

No	Task Name	Estimate (Hours)	Dependencies	Notes
1	API writing	2 hours	None	Implement new API endpoints
2	Existing API changes	2 hours	None	Modify existing API to include isOffboard field
3	DAL call implementation	2 hours	Database	Create data access layer calls
4	Logic for isOffboard status	1 hour	Database	Fetch data from the table
5	CoreERP DAL call implementation	2 hours	CoreERP service	Create data access layer calls for CoreERP integration
6	Unit testing	2 hours	Test framework	Ensure unit coverage
7	Full integration testing	2 hours	End-to-end system	Validate full functionality
8	Security Deposit API integration	3 hours	Security Deposit page	Integrate new API into the page with proper UI/UX and reverse action logo
9	Total	16 hours

---

Testing & Quality Assurance

• Unit Tests:

  • Test the validation of statusofland.
  • Ensure that the reversal is only processed when the land status is "occupied" and the customer has been offboarded.
  • Confirm the creation of a negative entry with the same brvnumber in the tblsecuritydeposite table.
  • Validate the retrieval of the isOffboard status.
  • Ensure that the correct status is returned based on the property status.
  • Confirm that non-existent BRV numbers return a 404 status.

• Integration Tests:

  • Validate end-to-end functionality by submitting reversal requests and checking the database for the correct changes.
  • Simulate transaction ID conflicts and ensure the system handles them gracefully.
  • Validate end-to-end functionality by querying existing BRV numbers and checking the returned statuses.
  • Simulate requests for non-existent BRV numbers to ensure correct error handling.

• Acceptance Criteria:

  • Reversal is processed only when the land status is "occupied" and offboarding has occurred.
  • A negative transaction entry is created with the correct brvnumber and details.
  • The isOffboard status accurately reflects the state of the property.
  • Responses return the correct status codes for valid and invalid requests.
  • Logs are generated for each reversal transaction.

• Testing Tools:

  • NUnit/xUnit for unit testing.
  • Postman for API testing.
  • Database integration tools for verifying transaction entries.

---

Deployment Considerations

• Configuration Changes:
  Ensure that logging is enabled to capture the reversal transactions.

• Rollout Plan:

  • Deploy to a staging environment for testing.
  • Monitor reversal transactions in the staging database.
  • Roll out to production once tests are passed.

---

Risks & Mitigations

Risk	Impact	Likelihood	Mitigation Strategy
Transaction ID conflict during reversal	High	Medium	Implement a proper ID conflict resolution mechanism
Incorrect reversal amount	Medium	Low	Validate negative amount during transaction creation
Status validation failure	Medium	Medium	Ensure statusofland is accurately checked before reversal

---

Review & Approval

• Reviewer:
  Ayon Das

• Approval Date:
  2024-10-18

---

Notes
This update allows users to quickly check the offboarding status of a property, improving overall system functionality and user experience.
