Authentication Service

Author(s)

• Arpita Dey

Last Updated Date

[2024-11-14]

---

SRS References

• 2.1.2

---

Version History

Version	Date	Changes	Author
1.0	2024-11-14	Initial draft	Arpita Dey
...	...	...	...

---

Feature Overview

Objective:
The authentication service provides a secure and efficient mechanism for user authentication and session management. This service enables users to log in and log out of the portal with different authentication methods tailored for mobile and web platforms. Mobile devices leverage stateless authentication using JWT (JSON Web Tokens), ensuring quick, token-based access without maintaining server-side sessions. Web users benefit from a refresh token mechanism that facilitates secure and seamless session persistence. Additionally, the service extends functionality to enable administrative capabilities, such as viewing the list of all users, creating or updating user profiles, and managing role scopes through add and edit functions.

Scope:

• User authentication for web and mobile platforms
• Role-based access control management
• User session management
• User profile management
• Scope and permission management

Dependencies:

• JWT Token Library
• Password Hashing Library
• Database Access Layer
• Caching Service
• Email Service (for password reset)

---

Requirements

(List all the functional and non-functional requirements that the feature must meet.)

1. Web devices must use refresh token-based authentication
2. Mobile devices must use JWT token-based authentication
3. Scope Management:
   • Support multiple scope types (Payroll, Attendance, Authentication)
   • Each type can have multiple scopes (e.g., Payroll.view, Payroll.get, Payroll.set)
4. Role Management:
   • Support multiple role types (Admin, Manager, Worker)
   • One role can have multiple scopes (many-to-one relationship)
   • Predefined role configurations:
     • Admin: Access to Payroll, Attendance, Authentication
     • Manager: Access to Payroll, Attendance
5. User Management:
   • One-to-one relationship between user and role
   • Example: user@example.com has Admin role
6. Core Authentication Features:
   • User login/logout functionality
   • View/create/update user profiles
7. Role Management Features:
   • GetRoles, GetMinimalRoles, GetScopes
   • AddRole, UpdateRole, DeleteRole

---

Design Specifications

(Provide detailed design specifications, including UI/UX designs, API interfaces, and any other relevant architectural details.)

• UI/UX Design:
  The UI should provide intuitive login and registration screens with clear options for both web and mobile platforms. Additionally, user role management should be easily accessible for admin users, with simple forms for adding and editing user roles and scopes.

• Data Models:
  (Detail the data structures, including database schemas or objects.)

public record ScopeMaster
{
  public required string Name { get; set; }
  public required bool Value { get; set; }
}
public record ScopeDetails : ScopeMaster
{
  public required ScopeType Type { get; set; }
  public required string Description { get; set; }
}
public class MinimalRoleDetails
{
  public Guid? RoleId { get; set; }
  public required string Role { get; set; }
  [System.Text.Json.Serialization.JsonConverter(typeof(JsonStringEnumConverter))]
  public required RoleType Type { get; set; }
}
public class RoleMaster : MinimalRoleDetails
{
  [JsonIgnore]
  public int TotalNumber { get; set; }
  public DateTime? Created { get; set; }
  public DateTime? Updated { get; set; }
}
public class RoleDetails : MinimalRoleDetails
{
  public required List<ScopeMaster> Scopes { get; set; }
}
public record LogInUser
{
  [Required(ErrorMessage = "Username is required")]
  public required string Username { get; init; }

  [Required(ErrorMessage = "Password is required")]
  [DataType(DataType.Password)]
  public required string Password { get; init; }
}
public class User
{
  public string? FirstName { get; set; }

  public string? LastName { get; set; }

  [Required(ErrorMessage = "Password is required")]
  [DataType(DataType.Password)]
  public required string Password { get; set; }

  [Required(ErrorMessage = "Email is required")]
  [EmailAddress]
  public required string Email { get; set; }

  [Phone]
  public string? Phone { get; set; }

  [Required(ErrorMessage = "User role is required")]
  public required string Role { get; set; }
  [System.Text.Json.Serialization.JsonConverter(typeof(JsonStringEnumConverter))]
  public RoleType Type { get; set; } = RoleType.User;

  public UserStatus Status { get; set; } = UserStatus.Uninitialized;

  [DataType(DataType.DateTime)]
  public DateTime? Created { get; set; }

  [DataType(DataType.DateTime)]
  public DateTime? Updated { get; set; }
}
public enum OperationType
{
  Insert,
  Update
}
public record UserRecord(string Email, string Role, string? FirstName, string? LastName, string? Phone, UserStatus Status = UserStatus.Uninitialized)
{
  [DataType(DataType.Password)]
  public string? Password { get; set; }

  [DataType(DataType.DateTime)]
  [JsonIgnore]
  public DateTime? Created { get; set; } = DateTime.UtcNow;

  [DataType(DataType.DateTime)]
  [JsonIgnore]
  public DateTime? Updated { get; set; } = DateTime.UtcNow;
}

• API Interfaces:

Endpoint	Method	Parameters	Response	Response Status Codes
/api/auth/login	POST	LogInUser	200 OK, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 404 Not Found, 500 Internal Server Error
/api/auth/token/refresh	GET	None	200 OK, 401 Unauthorized, 404 Not Found, 500 Internal Server Error
/api/auth/logout	GET	None	200 OK, 401 Unauthorized, 500 Internal Server Error
/api/auth/users	GET	None	List Of User	200 OK, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error
/api/auth/user/createorupdate	POST	[Required] OperationType, UserRecord	204 No Content, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 404 Not Found, 409 Conflict, 500 Internal Server Error
/api/auth/get/roles	GET	int pageNumber, int rowsPerPage	List Of RoleMaster	200 OK, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error
/api/auth/get/scopes	GET	Guid? roleId, string? role	List Of RoleMaster	200 OK, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error
/api/auth/add/role	POST	RoleDetails	200 OK, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error
/api/auth/update/role	PUT	RoleDetails	204 No Content, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error
/api/auth/delete/role	DELETE	Guid roleId	204 No Content, 400 Bad Request, 401 Unauthorized, 403 Forbidden, 500 Internal Server Error

• Third-Party Integrations:
  None

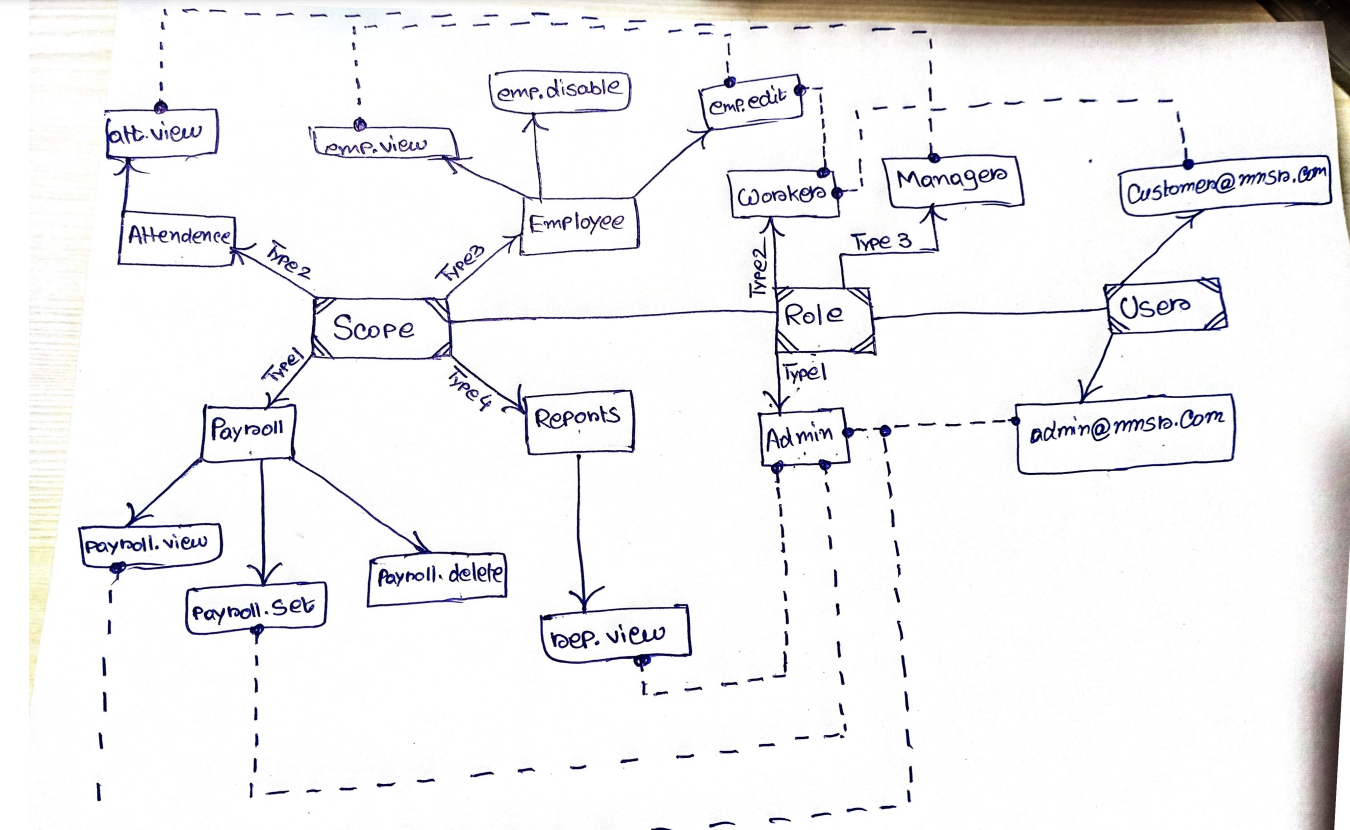

• Workflow:


---

Development Tasks & Estimates

(Break down the development process into smaller tasks and provide time estimates for each.)

No	Task Name	Estimate (Hours)	Dependencies	Notes
1	Introduce Scope Management System	3.5 hours	None	Implementing scope types and values.
2	Introduce Role Management System	2 hours	Task 1	Defining roles and their permissions.
3	Introduce User Management System	3 hours	Task 2	Adding user profile management functionality.
4	Introduce Login & Logout	4.5 hours	Task 1, 2, 3	Implementing JWT and refresh token authentication.
5	Total	13 hours

---

Testing & Quality Assurance

(List all the relevant test cases for this feature.)

Test Case ID	Description	Expected Result	Status
TC01	Test login with valid credentials	Returns 200 OK and a valid JWT or refresh token	Pending
TC02	Test login with invalid credentials	Returns 401 Unauthorized	Pending
TC03	Test role assignment functionality	Returns the correct role with associated scopes	Pending
TC04	Test user profile creation	User is successfully created with assigned role	Pending
TC05	Test logout functionality	Returns 200 OK, session terminated	Pending

---

Deployment Considerations

• None

---

Risks & Mitigations

(Identify potential risks and the strategies to mitigate them.)

Risk	Impact	Likelihood	Mitigation Strategy
Risk 1	High	Medium	Strategy for mitigating Risk 1
Risk 2	Medium	High	Strategy for mitigating Risk 2
...	...	...	...

---

Review & Approval

(Include a section for review and approval by stakeholders.)

• Reviewer:
  (Name and role of the person reviewing the document.)

• Approval Date:
  (Date when the feature is approved for development.)

---

Notes
(Add any additional notes or considerations related to the feature development here.)
