Real-Time Van Location Tracking

Author(s)

Sanket Mal
Ribhu Gautam
Ashik Ikbal
...

Last Updated Date

[2026-02-06]

SRS References

Version History

Version	Date	Changes	Author
1.0	2026-01-15	Initial draft	Sanket Mal , Ribhu Gautam
2.0	2026-02-04	SignalR optimization and model refactoring	Ashik Ikbal

Feature Overview

Objective:
Enable real-time tracking of technician vans for customers and admins, including live location, route, and ETA, using efficient and scalable backend and frontend architecture.

Scope:

Real-time GPS location updates from technician devices
Live map and ETA for customers
Admin dashboard to monitor all active technicians
Route calculation and deviation handling
Multi-device support for technicians

Dependencies:

SignalR (WebSocket communication)
MapBox API (route and ETA)
Valkey (caching)
PostgreSQL (persistent storage)
JWT authentication

Requirements

Functional:

Technician sends GPS updates every 3-5 seconds during tracking.
Customer receives live van location and ETA.
Admin can monitor all active technicians on a map.
Route recalculates if technician deviates.
Tracking stops on completion or cancellation.
Multi-device support for technician.
Breadcrumb trail is stored for audit.

Non-Functional:

Low latency (<2s) for updates.
Efficient MapBox API usage (rate-limited, cached).
High reliability and scalability.
Secure access (JWT, role-based).

Design Specifications

Architecture Diagram

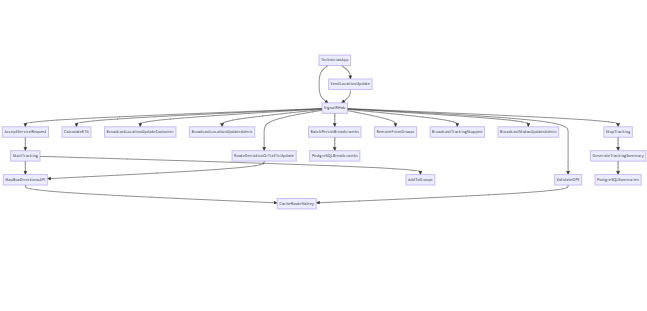

The following diagram illustrates the complete system architecture for real-time van location tracking, showing the interactions between technician devices, SignalR hub, backend services, databases, and client applications: Van Location Tracking Architecture

MapBox API Optimization Flow Diagram

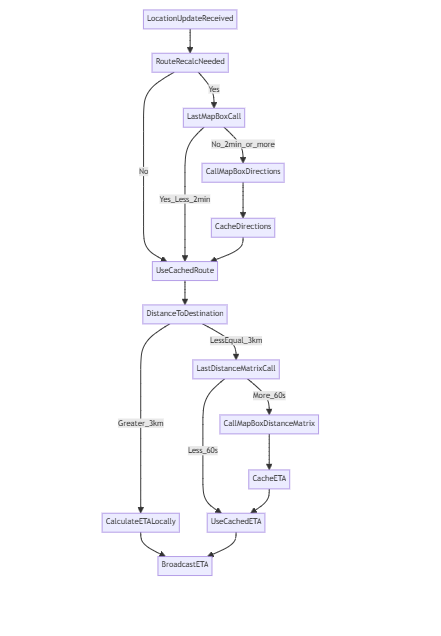

The following diagram illustrates the complete flow for optimizing MapBox API calls and calculating ETA and polylines internally. This approach helps minimize external API usage, improves performance, and ensures accurate route and ETA calculations for technician van tracking.

MapBox API Optimization Flow

Key Components:

Technician Device: Sends GPS updates every 3-5 seconds via SignalR (primary) or REST (fallback)
SignalR Hub: Manages WebSocket connections and broadcasts location updates to subscribed groups
Location Service: Processes GPS data, calculates routes/ETA, validates location accuracy
MapBox API: Provides route calculation and distance matrix for ETA
Valkey/Redis: Caches live tracking state and buffers breadcrumbs for performance
PostgreSQL: Stores persistent tracking history (breadcrumbs and summaries)
Customer/Admin Apps: Subscribe to real-time updates via SignalR groups

UI/UX Design:
- Customer View: Live map with technician location, van registration, technician code, current heading, speed, and ETA
- Admin Dashboard: Map showing all technicians (available + in-service), filter by status, click for tracking history
- Technician App: Location auto-tracks during service, shows customer data, manual stop option with completion reason

Data Models:
Below are the main models used in backend (C#).
For frontend, refer to the sample JSON in API/HUB sections.

// Location data component (used in broadcasts)
public record CustomerLocation
{
    public decimal Latitude { get; set; }
    public decimal Longitude { get; set; }
}
public record TechnicianLocation : CustomerLocation
{
    public double Heading { get; set; }
    public double Speed { get; set; }
    public double Accuracy { get; set; }
    public DateTime Time { get; set; }
}
// Technician sends location update (always, whether serving request or available)
public class LocationDataWithRequestId:TechnicianLocation
{
    public Guid? RequestId { get; set; }           // Nullable - null when available/no active request
}
public record TechnicianBasicInfo
{
    public Guid TechnicianId { get; init; }
    public string TechnicianCode { get; init; } = string.Empty;
    public TechnicianAvailabilityStatus? AvailabilityStatus { get; init; }
    public string FirstName { get; init; } = string.Empty;
    public string LastName { get; init; } = string.Empty;
    public string? Email { get; init; }
    public string? PhoneNumber { get; init; }
}
public record CustomerBasicInfo
{
    public Guid UserId { get; init; }

    // Customer identification
    public Guid CustomerId { get; init; }
    public string CustomerCode { get; init; } = string.Empty;

    // User information
    public string Email { get; init; } = string.Empty;
    public string FirstName { get; init; } = string.Empty;
    public string LastName { get; init; } = string.Empty;
    public string PhoneNumber { get; init; } = string.Empty;

    public Gender? Gender { get; init; }
}
public record VanBasicInfo
{
    public Guid VanId { get; init; }
    public string VanNumber { get; init; } = string.Empty;
    public string RegistrationNumber { get; init; } = string.Empty;
    public string VIN { get; init; } = string.Empty;

}

public record ServiceRequestBasicInfo
{
      public Guid RequestId { get; init; }
      public required string RequestNumber { get; set;}
      public Guid CustomerId { get; init; }
      public Guid? TechnicianId { get; init; }
      public ServiceStatus ServiceStatus { get; init; }
      public decimal Latitude { get; init;}
      public decimal Longitude {get; init;}
      public DateTime RequestedAt {get; init;}
}

public class RequestAssignedResponse
{
    public ServiceRequestBasicInfo? ServiceRequestInfo { get; set; }
    public TechnicianBasicInfo? TechnicianInfo { get; set; }
    public CustomerBasicInfo? CustomerInfo {get; set; }
}

// Data broadcasted to customer/admin on every location update
public class LocationBroadcastModel
{
    public ServiceRequestBasicInfo? ServiceRequestInfo { get; set; }
    public TechnicianBasicInfo? TechnicianInfo { get; set; }
    public CustomerBasicInfo? CustomerInfo {get; set; }
    public VanBasicInfo? VanInfo { get; set; }
    public CustomerLocation? CustomerLocation { get; set; }
    public TechnicianLocation? TechnicianLocation { get; set; }
    public int? DistanceInMeter { get; set; }
    public int? EtaInSec { get; set; }
    public string? EncodedPolyline {get; set;}
    public int? PolylineVersion { get; set; }
    public DateTime Timestamp { get; set; }
}
public record ServiceStartBroadcastModel
{
    public ServiceRequestBasicInfo? ServiceRequestInfo { get; set; }
    public TechnicianBasicInfo? TechnicianInfo { get; set; }
    public CustomerBasicInfo? CustomerInfo {get; set; }
    public DateTime ServiceStartAt { get; set; } = DateTime.UtcNow;
}
public record RequestCancelBroadcastModel
{
    public Guid RequestId {get; set;}
    public bool IsCanceledByTechnicain {get; set;} = false;
    public bool IsCanceledByCustomer {get; set;} = false;
    public decimal DistanceTravelInMeter {get; set;}
    public DateTime JourneyStartAt {get; set;}
    public DateTime JourneyEndAt {get; set;} = DateTime.UtcNow;
}
public record ServiceCompletedBroadcastModel
{
    public ServiceRequestBasicInfo? ServiceRequestInfo { get; set; }
    public TechnicianBasicInfo? TechnicianInfo { get; set; }
    public CustomerBasicInfo? CustomerInfo {get; set; }
    public DateTime ServiceCompletedAt { get; set; } = DateTime.UtcNow;
}
public record TechnicianArrivedBroadcastModel
{
    public Guid RequestId { get; set; }
    public string TechnicianName { get; set; }
    public string TechnicianCode { get; set; }
    public string Message { get; set; }
    public DateTime Timestamp { get; set; } = DateTime.UtcNow;
}
public record TechnicianPresenceResponseModel
{
    public Guid TechnicianId  { get; set; },
    public string? OnlineOfflineStatus  { get; set; }, // Online/Offline
    public DateTime UpdateAt  { get; set; } = DateTime.UtcNow;
}
// GPS trail - stored for audit and history
public class Breadcrumb
{
    public Guid Id { get; set; }
    public Guid RequestId { get; set; }
    public Guid TechnicianId { get; set; }
    public decimal Latitude { get; set; }
    public decimal Longitude { get; set; }
    public double? Heading { get; set; }
    public double? Speed { get; set; }
    public double? Accuracy { get; set; }
    public DateTime RecordedAt { get; set; }
}

// Journey summary - stored when tracking completes
public class TrackingSummary
{
    public Guid SummaryId { get; set; }
    public Guid RequestId { get; set; }
    public Guid TechnicianId { get; set; }
    public int TotalDistanceMeters { get; set; }
    public int TotalDurationMinutes { get; set; }
    public decimal AverageSpeedKmh { get; set; }
    public string EncodedPath { get; set; }        // Full journey polyline
    public DateTime TrackingStartedAt { get; set; }
    public DateTime TrackingCompletedAt { get; set; }
    public string CompletionReason { get; set; }   // "completed" or "canceled"
}

// Generic API response wrapper (already exists in codebase)
public record CommonResponse
{
    public int Status { get; init; }               // 200, 400, 401, 403, 404, 500
    public string? Message { get; init; }          // Success or error message
}

// Response wrapper with data (already exists in codebase)
public record ResponseWithData<T> : CommonResponse
{
    public T? Data { get; init; }                  // Response data (can be null on error)
}

// Pagination wrapper for list responses (already exists in codebase)
public class ServerPaginatedData<T>
{
    public List<T> Data { get; set; } = [];        // Array of items
    public int TotalNumber { get; set; }           // Total count of all records
    public bool HasPreviousPage { get; set; }
    public bool HasNextPage { get; set; }
    public int TotalPages { get; set; }
    public int PageNumber { get; set; }
    public int RowsPerPage { get; set; }
}

// Response model for tracking history endpoint
public record TrackingHistoryResponse
{
    public TrackingSummary Summary { get; set; }
    public List<Breadcrumb> Breadcrumbs { get; set; }
}

// Response model for current tracking state endpoint
public class CurrentTrackingResponse
{
    public LocationBroadcast Location { get; set; }
}

// Response model for all active trackings endpoint
public class ActiveTrackingsResponse
{
    public List<LocationBroadcast> ActiveTrackings { get; set; }
    public int TotalCount { get; set; }
}

// Response model for all technician locations endpoint
// Used by: GET /van-location/active-technicians and all_technicians_snapshot SignalR event
public class TechnicianLocationsResponse
{
    public List<TechnicianLocationSnapshot> Technicians { get; set; }
    public int TotalCount { get; set; }
    public DateTime Timestamp { get; set; }
}

SignalR Events Reference

All SignalR events used in the Van Location Tracking system:

Connection Events

Event Name	Direction	Description	Payload / Data Model
`handshake_ack`	Server → Client	Acknowledgment sent when client successfully connects	`{ ConnectionId, UserId, UserType, UserName, ConnectedAt, Message }`
`force_disconnect`	Server → Client	Forces client to disconnect (e.g., another device took over)	`{ Reason, Message }`
`initial_data`	Server → Client	Send initial data only to the customer and technician after connection is established; do not send the initial data to any admin group	`LocationBroadcastModel`

Location Tracking Events

Event Name	Direction	Description	Payload / Data Model
`update_location`	Client (Technician) → Server	Technician sends location update	`LocationDataWithRequestId`
`location_updated`	Server → Client (Customer/Admin)	Broadcast location update to subscribers	`LocationBroadcastModel`

Service Request Events

Event Name	Direction	Description	Payload / Data Model
`request_accepted`	Server → Client	Notification when request is accepted by technician	`LocationBroadcastModel`
`request_assigned`	Server → Client (Technician)	New request assigned to technician	`{ RequestId, CustomerName, ServiceType, ScheduledTime, Location }`
`request_canceled`	Server → Client	Request was canceled by either customer or technician	`RequestCancelBroadcastModel`
`service_started`	Server → Client	Service has started	`ServiceStartBroadcastModel`
`service_completed`	Server → Client	Service has been completed	`ServiceCompletedBroadcastModel`
`technician_arrived`	Server → Client (Admin/Technician/Customer)	Technician has arrived (distance < 30 meters)	`TechnicianArrivedBroadcastModel`

Admin Events

Event Name	Direction	Description	Payload / Data Model
`technician_presence_changed`	Server → Client (Admin and Customer)	Broadcast technician online/offline status to all groups where the technician is currently engaged	`TechnicianPresenceResponseModel`

Database Tables:

Breadcrumbs Table

Stores GPS trail (location history) for each tracked journey.

CREATE TABLE breadcrumbs (
    breadcrumbid UUID PRIMARY KEY,
    requestid UUID NOT NULL,
    technicianid UUID NOT NULL,
    latitude DECIMAL(9,6) NOT NULL,
    longitude DECIMAL(9,6) NOT NULL,
    heading DOUBLE PRECISION,
    speed DOUBLE PRECISION,
    accuracy DOUBLE PRECISION,
    recordedat TIMESTAMP NOT NULL,
    createdat TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP
);

-- Indexes for performance
CREATE INDEX idx_breadcrumbs_request_id ON breadcrumbs(request_id);
CREATE INDEX idx_breadcrumbs_technician_id ON breadcrumbs(technician_id);
CREATE INDEX idx_breadcrumbs_recorded_at ON breadcrumbs(recorded_at);

Tracking Summaries Table

Stores journey summary for each completed/canceled tracking session.

CREATE TABLE tracking_summaries (
    trackingsummaryid UUID PRIMARY KEY,
    requestid UUID NOT NULL,
    technicianid UUID NOT NULL,
    totaldistancemeters INT NOT NULL,
    totaldurationminutes INT NOT NULL,
    averagespeedkmh DECIMAL(5,2) NOT NULL,
    encodedpath TEXT NOT NULL,
    trackingstartedat TIMESTAMP NOT NULL,
    trackingcompletedat TIMESTAMP NOT NULL,
    journeystatus VARCHAR(20) NOT NULL, -- Status of the journey (e.g., ongoing, completed, cancelled)
    cancelbytechnician BOOLEAN NOT NULL DEFAULT FALSE,
    cancelbycustomer BOOLEAN NOT NULL DEFAULT FALSE,
    cancellationreason TEXT,
    createdat TIMESTAMP NOT NULL DEFAULT CURRENT_TIMESTAMP
);

-- Indexes for performance
CREATE INDEX idx_tracking_summaries_request_id ON tracking_summaries(request_id);
CREATE INDEX idx_tracking_summaries_technician_id ON tracking_summaries(technician_id);
CREATE INDEX idx_tracking_summaries_completed_at ON tracking_summaries(tracking_completed_at);

API Interfaces:

HTTP REST Endpoints

Endpoint	Method	Purpose	Parameters	Request Model	Response Model	Status Codes
`/van-location/update`	POST	FALLBACK ONLY: Use SignalR `SubmitLocation` first; use REST only if SignalR fails	JWT in header	LocationDataWithRequestId	`CommonResponse`	200, 400, 401, 500

SignalR Hub: `/hubs/vanlocation`

Authentication: JWT token via query string ?access_token={JWT_TOKEN}

Hub Method	Direction	Purpose	Request Model	Server-to-Client Events
(Connection Established)	Server → Client	AUTOMATIC: Sent when Technician/Customer/Admin connects to SignalR	-	`handshake_ack`, `initial_data`
`SubmitLocation`	Client → Server	PRIMARY METHOD: Technician sends location update every 3-5s (use SignalR, not REST)	LocationDataWithRequestId	`location_updated`, `technician_arrived`
(Background Events)	Server → Client	AUTOMATIC: Sent when various events occur	-	`request_accepted`, `request_assigned`, `service_started`, `service_completed`, `force_disconnect`, `request_canceled`

API Examples

IMPORTANT: Recommended Flow for Developers

Location Updates (Technician):

Primary Method: Use SignalR SubmitLocation method (WebSocket) for real-time location updates.
- Called every 3-5 seconds
- Faster and more efficient than HTTP
- Automatically broadcasts to customers and admins
Fallback Method: Use REST POST /api/location/update only if:
- SignalR connection is temporarily disconnected
- Network only supports HTTP (rare)
- SignalR keeps failing after retry attempts
When SignalR is restored, switch back to SubmitLocation immediately.

1. Submit Location via SignalR (Technician) - PRIMARY METHOD

Technician sends location update every 3-5 seconds via SignalR (whether serving request or available):

SignalR Hub Method: connection.invoke("SubmitLocation", LocationDataWithRequestId)

Request (sent via SignalR):

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "latitude": 28.6139,
  "longitude": 77.209,
  "heading": 125.5,
  "speed": 45.3,
  "accuracy": 8.5,
  "timestamp": 1737379200
}

Broadcast Events (automatic - no explicit response):

Event: location_updated (to request:{requestId} group if serving request)

Data Model: LocationBroadcastModel

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "vanInfo": {
    "vanId": "660e8400-e29b-41d4-a716-446655440001",
    "vanNumber": "VAN-001",
    "registrationNumber": "DL-01-AB-1234"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "customerLocation": {
    "latitude": 28.65,
    "longitude": 77.22
  },
  "technicianLocation": {
    "latitude": 28.6139,
    "longitude": 77.209,
    "heading": 45.5,
    "speed": 12.5,
    "accuracy": 10.0
  },
  "distanceInMeter": 4235,
  "etaInSec": 480,
  "encodedPolyline": "_p~iF~ps|U_ulLnnqC_mqNvxq`@",
  "polylineVersion": 2,
  "timestamp": "2026-01-21T14:30:00Z"
}

Event: location_updated (to AllAdmins group - always broadcast)

Data Model: LocationBroadcastModel

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "vanInfo": {
    "vanId": "660e8400-e29b-41d4-a716-446655440001",
    "vanNumber": "VAN-001",
    "registrationNumber": "DL-01-AB-1234"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "customerLocation": {
    "latitude": 28.65,
    "longitude": 77.22
  },
  "technicianLocation": {
    "latitude": 28.6139,
    "longitude": 77.209,
    "heading": 45.5,
    "speed": 12.5,
    "accuracy": 10.0
  },
  "distanceInMeter": 3500,
  "etaInSec": 1200,
  "encodedPolyline": "encoded_polyline_string_here",
  "polylineVersion": 2,
  "timestamp": "2026-01-21T14:30:00Z"
}

1b. Submit Location via REST (Technician) - FALLBACK ONLY

Use this endpoint ONLY if SignalR connection fails. Same behavior as SignalR but slower.

POST /van-location/update

Request:

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "latitude": 28.6139,
  "longitude": 77.209,
  "heading": 125.5,
  "speed": 45.3,
  "accuracy": 8.5,
  "timestamp": 1737379200
}

Response (200 OK):

{
  "status": 200,
  "message": "Location updated"
}

Note: Backend still broadcasts to customers/admins the same way, but there's network latency delay.

SignalR immediately sends to caller:

Event: location_updated (current state if tracking active)

Data Model: LocationBroadcastModel

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "vanInfo": {
    "vanId": "660e8400-e29b-41d4-a716-446655440001",
    "vanNumber": "VAN-001",
    "registrationNumber": "DL-01-AB-1234"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "customerLocation": {
    "latitude": 28.65,
    "longitude": 77.22
  },
  "technicianLocation": {
    "latitude": 28.6139,
    "longitude": 77.209,
    "heading": 45.5,
    "speed": 12.5,
    "accuracy": 10.0
  },
  "distanceInMeter": 4235,
  "etaInSec": 480,
  "encodedPolyline": "_p~iF~ps|U_ulLnnqC_mqNvxq`@",
  "polylineVersion": 2,
  "timestamp": "2026-01-21T14:30:00Z"
}

2. Get Tracking History (Admin/Customer)

Get breadcrumb trail for a completed service:

GET /van-location/request/{requestId}/history

Authorization: Bearer {JWT_TOKEN}

Response:

{
  "summary": {
    "summaryId": "abc12345-def6-7890-ghij-klmnop123456",
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "totalDistanceMeters": 8456,
    "totalDurationMinutes": 23,
    "averageSpeedKmh": 22.0,
    "encodedPath": "_p~iF~ps|U_ulLnnqC_mqNvxq`@...",
    "trackingStartedAt": "2026-01-21T14:00:00Z",
    "trackingCompletedAt": "2026-01-21T14:23:00Z",
    "completionReason": "completed"
  },
  "breadcrumbs": [
    {
      "id": "crumb1",
      "latitude": 28.6139,
      "longitude": 77.209,
      "heading": 125.5,
      "speed": 45.3,
      "accuracy": 8.5,
      "recordedAt": "2026-01-21T14:00:00Z"
    },
    {
      "id": "crumb2",
      "latitude": 28.6145,
      "longitude": 77.2095,
      "heading": 126.0,
      "speed": 46.0,
      "accuracy": 8.2,
      "recordedAt": "2026-01-21T14:00:30Z"
    }
  ]
}

3. Get All Technician Locations (Admin)

Get snapshot of all technician locations (active + available):

GET /api/location/technicians/locations

Authorization: Bearer {JWT_TOKEN}

Response:

[
  {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "firstName": "John",
    "lastName": "Doe",
    "vanId": "660e8400-e29b-41d4-a716-446655440001",
    "vanNumber": "VAN-001",
    "registrationNumber": "DL-01-AB-1234",
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "location": {
      "latitude": 28.6139,
      "longitude": 77.209,
      "heading": 125.5,
      "speed": 45.3,
      "accuracy": 8.5
    },
    "status": "EnRoute",
    "lastUpdate": "2026-01-21T14:30:00Z"
  }
]

SignalR Event Examples

Connection Events

Event: handshake_ack (Server → Client)

Sent immediately after successful connection to confirm handshake.

{
  "connectionId": "abc123xyz789",
  "userId": "770e8400-e29b-41d4-a716-446655440002",
  "userType": "technician",
  "userName": "John Doe",
  "connectedAt": "2026-01-21T14:30:00Z",
  "message": "Connected successfully"
}

Event: force_disconnect (Server → Client)

Forces client to disconnect (e.g., when another device takes over the same user session).

{
  "reason": "another_device_connected",
  "message": "Your account has been accessed from another device. You have been disconnected."
}

Service Request Events

Event: request_accepted (Server → Client)

Data Model: LocationBroadcastModel

Sent when a technician accepts a service request.

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "vanInfo": {
    "vanId": "660e8400-e29b-41d4-a716-446655440001",
    "vanNumber": "VAN-001",
    "registrationNumber": "DL-01-AB-1234"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "customerLocation": {
    "latitude": 28.65,
    "longitude": 77.22
  },
  "technicianLocation": {
    "latitude": 28.6139,
    "longitude": 77.209,
    "heading": 45.5,
    "speed": 12.5,
    "accuracy": 10.0
  },
  "distanceInMeter": 15000,
  "etaInSec": 1200,
  "encodedPolyline": "_p~iF~ps|U_ulLnnqC_mqNvxq`@",
  "polylineVersion": 2,
  "timestamp": "2026-01-21T14:30:00Z"
}

Event: request_assigned (Server → Technician)

Sent when a new request is assigned to a technician.

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "requestNo": "RQ-2026-001234",
  "firstName": "Rajesh",
  "lastName": "Kumar",
  "customerCode": "CUST-5678",
  "serviceType": "Oil Change",
  "scheduledTime": "2026-01-21T15:00:00Z",
  "location": {
    "latitude": 28.65,
    "longitude": 77.22,
    "address": "123 MG Road, Connaught Place, New Delhi, 110001"
  }
}

Event: request_canceled (Server → Client)

Data Model: RequestCancelBroadcastModel

Sent when a request is canceled by either technician or customer.

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "isCanceledByTechnician": false,
  "isCanceledByCustomer": true,
  "distanceTravelInMeter": 5000,
  "journeyStartAt": "2026-01-21T14:00:00Z",
  "journeyEndAt": "2026-01-21T14:15:00Z"
}

Event: service_started (Server → Client)

Data Model: ServiceStartBroadcastModel

Sent when service has started.

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "serviceStartAt": "2026-01-21T14:30:00Z"
}

Event: service_completed (Server → Client)

Data Model: ServiceCompletedBroadcastModel

Sent when service has been completed.

{
  "serviceRequestInfo": {
    "requestId": "550e8400-e29b-41d4-a716-446655440000",
    "requestNo": "RQ-2026-001234"
  },
  "technicianInfo": {
    "technicianId": "770e8400-e29b-41d4-a716-446655440002",
    "technicianCode": "TECH-001",
    "availabilityStatus": "EnRoute",
    "firstName": "John",
    "lastName": "Doe",
    "email": "john.doe@example.com",
    "phoneNumber": "+91-9876543210"
  },
  "customerInfo": {
    "userId": "abc12345-def6-7890-ghij-klmnop123456",
    "customerId": "cust-uuid-here",
    "customerCode": "CUST-5678",
    "email": "rajesh.kumar@example.com",
    "firstName": "Rajesh",
    "lastName": "Kumar",
    "phoneNumber": "+91-9988776655",
    "gender": "Male"
  },
  "serviceCompletedAt": "2026-01-21T15:30:00Z"
}

Event: technician_arrived (Server → Admin/Technician/Customer)

Data Model: TechnicianArrivedBroadcastModel

Sent when technician arrives at customer location (distance < 30 meters).

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "firstName": "John",
  "lastName": "Doe",
  "technicianCode": "TECH-001",
  "message": "Technician has arrived at your location",
  "timestamp": "2026-01-21T14:30:00Z"
}

Admin Dashboard Events

Event: technician_presence_changed (Server → Admin)

Data Model: TechnicianPresenceResponseModel

Sent when technician goes online or offline.

{
  "technicianId": "770e8400-e29b-41d4-a716-446655440002",
  "onlineOfflineStatus": "Online",
  "updateAt": "2026-01-21T14:30:00Z"
}

Endpoint Reference Summary

⚠️ CRITICAL FOR DEVELOPERS: Location Update Flow

Every technician app MUST follow this flow:

EVERY 3-5 SECONDS:

IF (signalRHub.isConnected) {
  ✅ USE: connection.invoke("SubmitLocation", LocationDataWithRequestId)
  ← Fastest, real-time, recommended
}
ELSE IF (signalRHub.isDisconnected && retryCount < MAX_RETRIES) {
  🔄 TRY TO RECONNECT SignalR
  ← Attempt auto-reconnect with exponential backoff
}
ELSE IF (signalRHub.stillFailed && locationUpdate.isUrgent) {
  ⚠️ FALLBACK: POST /van-location/update
  ← Only use if SignalR keeps failing
  ← Slower (HTTP latency), but guarantees delivery
}

ONCE SignalR RECONNECTS {
  🔁 SWITCH BACK to SubmitLocation immediately
  ← Stop using REST endpoint
}

Analogy: Think of SignalR as a fast phone call (real-time) and REST as a text message (slower). Use the phone when available, send a text only if the line is down.

1. POST `/van-location/update` (FALLBACK ONLY)

Purpose: Fallback endpoint for location updates when SignalR is unavailable. Same backend processing as SignalR but with HTTP latency.

Request:

{
  "requestId": "550e8400-e29b-41d4-a716-446655440000",
  "latitude": 28.6139,
  "longitude": 77.209,
  "heading": 125.5,
  "speed": 45.3,
  "accuracy": 8.5,
  "timestamp": 1737379200
}

Response (200 OK):

{
  "status": 200,
  "message": "Location updated",
  "data": null
}

Response (400 Bad Request):

{
  "status": 400,
  "message": "GPS accuracy exceeds maximum allowed (30m)",
  "data": null
}

Third-Party Integrations:
- MapBox Directions API: Called when tracking starts, when technician deviates from route (>50m), or every 5 minutes for traffic updates. Returns encoded polyline and duration.
- MapBox Distance Matrix API: Called when technician is within 3km of destination (cached for 60 seconds) for accurate ETA.
- Valkey/Redis: Stores live tracking state, breadcrumb buffer, connection metadata, and rate limiting data. Auto-expires after TTL.
- PostgreSQL: Stores completed journeys (breadcrumbs, summaries) for audit, billing, and analytics.
- JWT via AWS Cognito: Authenticates all WebSocket and HTTP requests.
Workflow:

Scenario 1: Technician Available (No Active Request)
- Technician logs in to app
- App connects to SignalR hub with JWT
- Technician sends location updates every 3-5 seconds with RequestId = null
- Backend broadcasts to AllAdmins group only
- Admin dashboard sees technician on map with status "Available"
- Customer apps do NOT receive location updates
Scenario 2: Tracking Service Request
- Technician accepts service request → calls StartTracking(requestId, vanId)
- Backend calls MapBox Directions API to get initial route
- Backend adds technician to request:{requestId} group and tech:{technicianId} group
- Customer sees technician location and ETA on map
- Admin sees technician on map with status "EnRoute"
- Technician sends location updates every 3-5 seconds with RequestId = populated
- Backend:
  - Validates GPS data (accuracy ≤ 30m, timestamp recent)
  - Updates Valkey tracking state
  - Buffers breadcrumb for batch DB insert
  - Checks if route recalculation needed:
    - If off route > 50m AND 2+ minutes since last call → Call MapBox Directions
    - If 5+ minutes since last call → Call MapBox for traffic update
  - Calculates ETA:
    - If > 3km from destination → Use local calculation (FREE)
    - If < 3km from destination → Call MapBox Distance Matrix (cached 60s)
  - Broadcasts location_updated to request:{requestId} group (customer + admin)
  - Broadcasts to AllAdmins group (all admins)
Scenario 3: Service Completed
- Technician calls StopTracking(requestId, "completed")
- Backend:
  - Flushes all buffered breadcrumbs to database
  - Generates TrackingSummary (distance, duration, polyline)
  - Deletes tracking state from Valkey
  - Removes technician from request:{requestId} group
- Customer sees "Service completed" and journey summary
- Admin sees technician status back to "Available"
- Admin can later view full journey history via /api/location/history/{requestId}
Scenario 4: Technician Cancels Request
- Technician calls CancelRequest(requestId, reason)
- Backend follows same cleanup as Scenario 3
- Broadcasts request_canceled_by_technician event
- Customer receives notification
Scenario 5: Multi-Device Support
- Technician logs in on phone AND tablet simultaneously
- Both connect to SignalR hub (2 connections in tech:{technicianId} group)
- When technician sends location from phone, both devices receive update
- If one device disconnects, the other maintains tracking
- When duty period ends, both connections are terminated
Best Practices for Developers:

Frontend (Flutter/Web):
1. Always start with SignalR SubmitLocation - This is 10-100x faster than REST
2. Implement SignalR reconnection logic with exponential backoff (1s, 2s, 4s, 8s, max 30s)
3. Only use REST /api/location/update as fallback - Don't mix both simultaneously
4. Queue location updates during reconnection - Don't lose data while SignalR is reconnecting
5. Switch back to SignalR immediately once connection is restored
6. Handle both location_updated events (customers receive both)
7. Always include JWT token - in query string for SignalR, in Authorization header for REST
8. Send updates every 3-5 seconds - balance between accuracy and server load
Backend (C#):
1. Process location updates identically whether from SignalR or REST (same validation, broadcasting)
2. Validate GPS accuracy (reject if > 30m, log outliers)
3. Rate-limit per technician - max 1 update per 2 seconds (defense against bad clients)
4. Batch breadcrumb inserts - flush every 30 seconds or 100 updates, not every single update
5. Use Valkey transactions for atomic updates (update state + buffer breadcrumb together)
6. Broadcast to multiple groups - request:{requestId} (customer) + AllAdmins (admin dashboard)
7. Cache MapBox API responses - Distance Matrix for 60s, Directions for 5 minutes
8. Log all location update errors but don't fail the request - broadcast what you can
Purpose:
- Provides initial context to users when they connect/reconnect to SignalR
- Technicians receive their active request details and customer information (for immediate context)
- Customers receive their active request details and technician's current location (to display on map)
- Admins receive all active requests with technician locations (for monitoring dashboard)
- Helps clients quickly restore state without making additional REST API calls

Development Tasks & Estimates

(Break down the development process into smaller tasks and provide time estimates for each.)

No	Task Name	Estimate (Hours)	Dependencies	Notes
1	SignalR Hub Setup & Groups	6	None	VanLocationHub with group logic
2	REST API Endpoints	8	1	All 6 endpoints with validation
3	LocationUpdate Processing Service	8	2	GPS validation, ETA, route logic
4	MapBox API Integration	6	3	Directions + Distance Matrix
5	Valkey State Management	6	3	TrackingState, buffering, TTL
6	Database Layer (DAL)	6	5	Breadcrumb persistence, summaries
7	Background Services	4	6	BreadcrumbPersistence, Cleanup
8	Error Handling & Logging	4	All	Comprehensive logging
9	Unit Tests	6	1-8	Service, DAL, API tests
10	Integration Tests	6	1-8	Hub, API, E2E flow tests
11	Load Testing	4	1-10	100+ concurrent connections
12	Documentation & Examples	3	All	API docs, integration guides
Total	Development Time	68 hours		~2 weeks with 1 developer

Testing & Quality Assurance

Unit Tests:
- LocationTrackingService: Process location, calculate ETA, detect route deviation
- MapBoxService: API calls, error handling, retry logic
- Valkey operations: State management, TTL, expiry
- GPS validation: Accuracy filter, timestamp validation
- Rate limiting: Per-technician, per-request checks
Integration Tests:
- SignalR Hub: Connection, group management, broadcast events
- HTTP REST API: All 6 endpoints with various scenarios
- End-to-end flow: Start tracking → multiple updates → stop tracking
- Multi-device support: Multiple connections from same user
- Error handling: Connection loss, API failures, invalid data
Acceptance Criteria:
- Technician location updates appear on customer app in < 2 seconds
- Admin dashboard shows all active technicians in real-time
- ETA is accurate within ±3 minutes
- Route recalculates when technician deviates > 50m
- Breadcrumb trail is complete and retrievable after service ends
- MapBox API calls do not exceed 10 per 30-minute service
- System handles 100+ concurrent active trackings
- Multi-device connections stay synchronized
- Tracking automatically stops on completion/cancellation
Testing Tools:
- xUnit: Unit testing framework
- Moq: Mocking dependencies
- Testcontainers: Docker containers (PostgreSQL, Valkey)
- k6: Load testing (100 concurrent users)
- SignalR Client Library: Hub method testing
- Postman: REST API testing

Deployment Considerations

Configuration Changes:
- Add MapBox credentials to appsettings.json (API key, base URL)
- Configure SignalR: MaxConnectionsPerUser, ClientTimeoutSeconds
- Configure location tracking: MinUpdateInterval, MaxGpsAccuracy, RouteRecalcInterval
- Add Valkey connection string (IP, port, password if needed)
- Create database migration for 3 new tables (breadcrumbs, summaries, events)
Rollout Plan:
- Phase 1 (Week 1): Deploy to staging, test with 5 internal technicians
- Phase 2 (Week 2): Pilot with 20 technicians in one city
- Phase 3 (Week 3): Gradual rollout to 50% of technicians
- Phase 4 (Week 4): Full rollout to all technicians
- Monitoring: Track MapBox API usage, WebSocket connections, database performance
Feature Toggles:
- Enable/disable real-time tracking per environment
- Enable/disable MapBox API integration (fallback to local ETA)
- Enable/disable breadcrumb persistence (for testing)

Authentication Guide - JWT/Cognito integration
MapBox API Documentation - Directions & Distance Matrix
Redis/Valkey Documentation - Session & cache management
ASP.NET Core SignalR Guide - WebSocket fundamentals
Dapper ORM Documentation - Data access patterns
Flutter Geolocator Package - Mobile location tracking
MapBox Flutter SDK - Map rendering

Risks & Mitigations

Risk	Impact	Likelihood	Mitigation Strategy
GPS accuracy degradation in urban areas	Medium	High	Use Valkey to cache last-known location, implement fallback to cellular triangulation
MapBox API rate limiting	High	Medium	Implement request queuing, caching (60s for Distance Matrix), and conditional calls (2+ min interval)
WebSocket connection drops	Medium	High	Auto-reconnect with exponential backoff, message queue during disconnection, ACK-based retransmission
High database write load	Medium	Medium	Batch insert breadcrumbs every 30s, use async writes, implement partitioning on timestamp
Technician data privacy concerns	High	Low	Encrypt coordinates at rest, enforce role-based access, audit all location queries
Valkey cache inconsistency	Medium	Low	Use transactions for critical updates, implement cache invalidation patterns, monitor TTL expiry

Review & Approval

Reviewer(s):
- Sanket Mal (Backend Architecture)
- Ribhu Gautam (System Design)
- Frontend Tech Lead (To be assigned)
Approval Status:
- ✅ Architecture Review: Complete
- ✅ API Specification: Complete
- ⏳ Security Review: Pending
- ⏳ Performance Review: Pending
- ⏳ Frontend Review: Pending
Approval Date: [To be completed after reviews]

Notes

Frontend Developers: Start with the "API Examples" and "Data Models" sections. JSON samples show exact request/response structure.
Backend Developers: Use the "Design Specifications", "API Interfaces", and "Development Tasks" sections for implementation guide.
DevOps: Follow the "Deployment Considerations" section for configuration and phased rollout.
QA: Use the "Testing & QA" section for test cases and acceptance criteria.
Budget Estimate: ~68 hours (11 days at 6 hours/day) for complete implementation
MapBox Cost Estimate: ~$20/month for full rollout (vs. $1000/month without optimization)

Real-Time Van Location Tracking

Author(s)​

Last Updated Date​

SRS References​

Version History​

Feature Overview​

Requirements​

Design Specifications​

Architecture Diagram​

MapBox API Optimization Flow Diagram​

SignalR Events Reference​

Connection Events​

Location Tracking Events​

Service Request Events​

Admin Events​

Breadcrumbs Table​

Tracking Summaries Table​

HTTP REST Endpoints​

SignalR Hub: /hubs/vanlocation​

API Examples​

IMPORTANT: Recommended Flow for Developers​

1. Submit Location via SignalR (Technician) - PRIMARY METHOD​

1b. Submit Location via REST (Technician) - FALLBACK ONLY​

2. Get Tracking History (Admin/Customer)​

3. Get All Technician Locations (Admin)​

SignalR Event Examples​

Connection Events​

Service Request Events​

Admin Dashboard Events​

Endpoint Reference Summary​

⚠️ CRITICAL FOR DEVELOPERS: Location Update Flow​

1. POST /van-location/update (FALLBACK ONLY)​

Development Tasks & Estimates​

Testing & Quality Assurance​

Deployment Considerations​

Related Documentation and Resources​

Risks & Mitigations​

Review & Approval​

Author(s)

Last Updated Date

SRS References

Version History

Feature Overview

Requirements

Design Specifications

Architecture Diagram

MapBox API Optimization Flow Diagram

SignalR Events Reference

Connection Events

Location Tracking Events

Service Request Events

Admin Events

Breadcrumbs Table

Tracking Summaries Table

HTTP REST Endpoints

SignalR Hub: `/hubs/vanlocation`

API Examples

IMPORTANT: Recommended Flow for Developers

1. Submit Location via SignalR (Technician) - PRIMARY METHOD

1b. Submit Location via REST (Technician) - FALLBACK ONLY

2. Get Tracking History (Admin/Customer)

3. Get All Technician Locations (Admin)

SignalR Event Examples

Connection Events

Service Request Events

Admin Dashboard Events

Endpoint Reference Summary

⚠️ CRITICAL FOR DEVELOPERS: Location Update Flow

1. POST `/van-location/update` (FALLBACK ONLY)

Development Tasks & Estimates

Testing & Quality Assurance

Deployment Considerations

Related Documentation and Resources

Risks & Mitigations

Review & Approval
